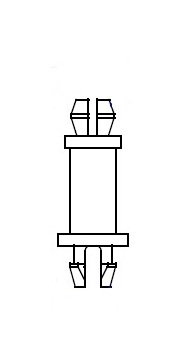

72 Series Nylon PCB Support .157 Board Hole x .157 Chassis Side
72 Series Nylon PCB Support .157 Board Hole x .157 Chassis Side
SKU:01C-69155f
Durable Nylon PCB Support for .157 Snap Fit PCBs & Chassis Ends. ASTM Compliant, Temperature Range -40 to 185F. Pack of 1000.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
72 Series Nylon PCB Support .157 Board Hole x .157 Chassis Side
$45.99
Quantity: 1
Claim Your Seller Account
72 Series Nylon PCB Support .157 Board Hole x .157 Chassis Side
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 72 Series Nylon PCB Support is designed for applications requiring precise compatibility with .157 snap fit PCBs and .157 lock fit chassis ends. Manufactured from Nylon 66 UL94V-2 material (UL94V-0 available), this support ensures durability and reliability. With ASTM D 4066 and PA111 compliance, it meets industry standards for performance and safety. The support has a temperature range of -40 to 185F (-40 to 85C), making it suitable for various environments. Each bag contains 1000 units, offering cost-effective solutions for circuit board mounting.

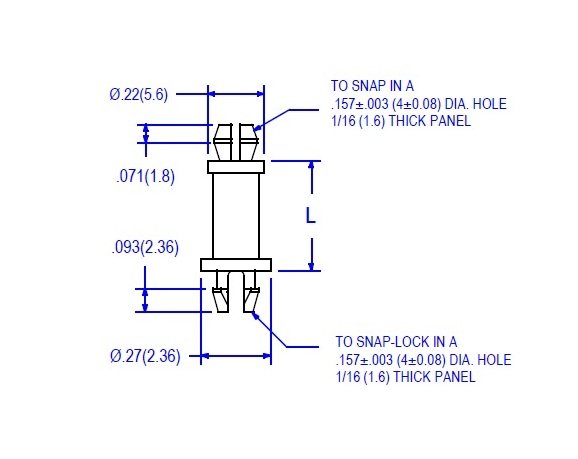

Product Specifications
Specifications Dim L
.500 (12.7) inches (mm)
