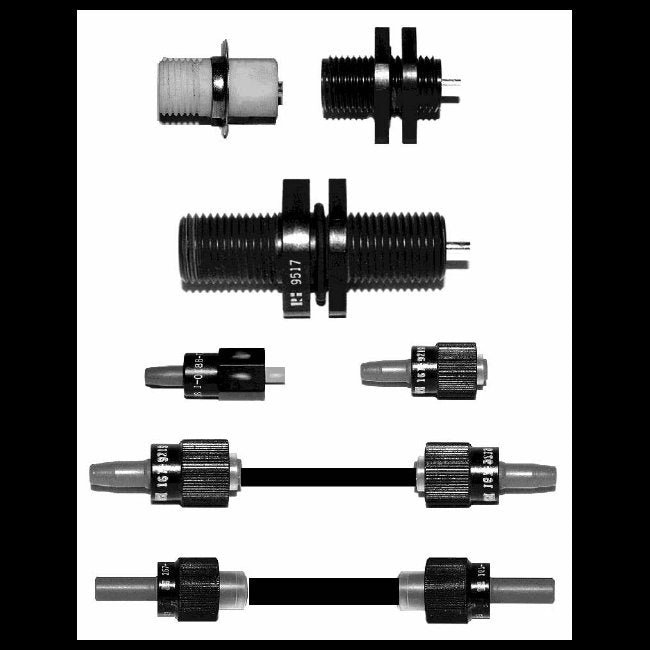

• 720 Series Single-Ended Plug Cable Assembly - 10-25 kVDC LGH™ Compatible - Image 1
  • 720 Series Single-Ended Plug Cable Assembly - 10-25 kVDC LGH™ Compatible - Image 2
1 2
Teledyne Reynolds →

720 Series Single-Ended Plug Cable Assembly - 10-25 kVDC LGH™ Compatible

720 Series Single-Ended Plug Cable Assembly - 10-25 kVDC LGH™ Compatible

HIG-20ca52

High-reliability 720 Series Single-Ended Plug Cable Assembly for 10-25 kVDC applications. Ideal for Military/Aerospace use.

$129.99
$129.99
Sale

Initiate Order

720 Series Single-Ended Plug Cable Assembly - 10-25 kVDC LGH™ Compatible

720 Series Single-Ended Plug Cable Assembly - 10-25 kVDC LGH™ Compatible

$129.99

Quantity: 1

Claim Your Seller Account

720 Series Single-Ended Plug Cable Assembly - 10-25 kVDC LGH™ Compatible

720 Series Single-Ended Plug Cable Assembly - 10-25 kVDC LGH™ Compatible

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 720 Series Single-Ended Plug Cable Assembly offers high reliability with compatibility across various LGH™ interfaces. Rated from 10 to 25 kVDC, this assembly functions seamlessly at altitudes up to 70,000 ft and in temperatures ranging from -55°C to 125°C. Featuring annular sealing rings for improved altitude operation, this kit includes HI-REL plugs suitable for cable assembly fabrication. With a robust design for Military/Aerospace applications, it can be used in Electronic Countermeasure Systems, TWT connections, lasers, and more.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Body Properties Coupling Nut Material
Plastic
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Lgh Compatibility
LGH 1I
Specifications Mating Compatibility
Mates all series 720 receptacles and all LGH LI series receptacles. Also mates Reynolds C720 receptacles RC1525 and 3RC1525; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
720
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
20 kVDC
