727 Series Double-Ended Cable Assembly with LGH™ Compatible Connectors
727 Series Double-Ended Cable Assembly with LGH™ Compatible Connectors
SKU:HIG-b0f029
High-performance 727 Series Double-Ended Cable Assembly for high voltage applications. 25 kVDC rating, LGH™ 1LI series compatible, and threaded coupling.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
727 Series Double-Ended Cable Assembly with LGH™ Compatible Connectors
$99.99
Quantity: 1
Claim Your Seller Account
727 Series Double-Ended Cable Assembly with LGH™ Compatible Connectors
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

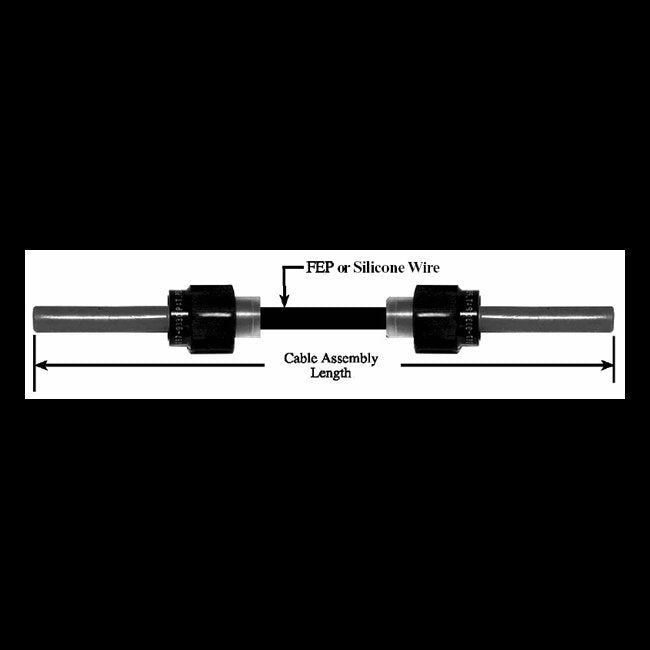

The 727 Series Double-Ended Cable Assembly is a high-performance solution designed for use in high voltage applications, with a voltage rating of 25 kVDC. Featuring a Double-Ended Plug Cable Assembly type and threaded coupling style, this assembly is engineered to meet stringent altitude and reduced pressure requirements up to 70,000 ft. The connectors are compatible with LGH 1LI series receptacles, offering reliable and secure connections. With a current rating of 10 Amp and 2.5 Amp, and an operating temperature range from -55 to 125 °C, this cable assembly is ideal for demanding environments where temperature variations occur. The plastic coupling nut material ensures durability and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 2.5 Amp
Specifications Export Classification
TBD
Specifications Lgh Compatibility
LGH 1LI
Specifications Mating Connectors
Mates all series 727 receptacles and all LGH 1LI series receptacles. Also mates Reynolds C727 receptacle RC1535 ; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
727
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
25 kVDC
