727 Single-Ended Cable Assembly
727 Single-Ended Cable Assembly
SKU:HIG-44bbaf
High-precision single-ended cable assembly for 10-25 kVDC applications. Threaded coupling, 10A current rating, -55 to 125 ºC operating temp, compatible with LGH 1LI receptacles.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
727 Single-Ended Cable Assembly
$129.99
Quantity: 1
Claim Your Seller Account
727 Single-Ended Cable Assembly
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

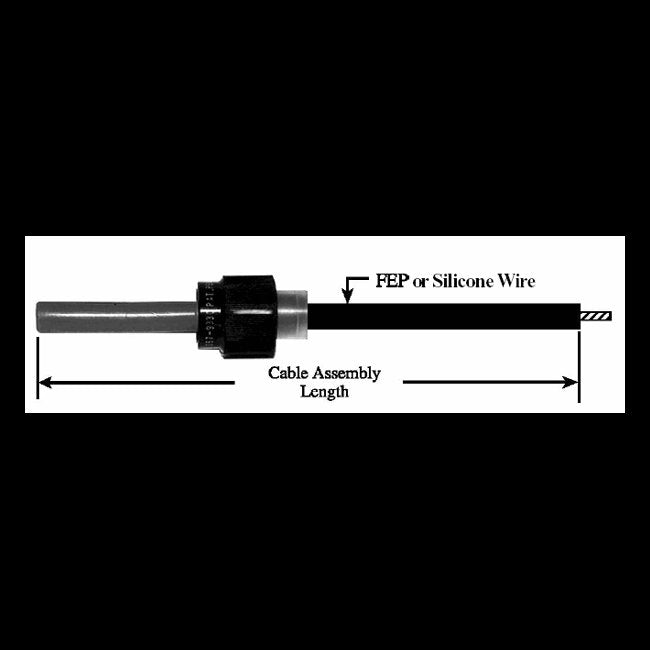

The 727 Single-Ended Cable Assembly is a non-standard, high-precision solution designed for 10, 15, 20, and 25 kVDC applications. Featuring a 0.180" FEP wire and a P/N 167-8840 connector with a fluorosilicone rubber insulator, this cable assembly ensures optimal performance in challenging environments. With a current rating of 10 Amp (2.5 Amp), operating temperature range of -55 to 125 ºC, and a test voltage of 25 kVDC at 70,000 ft., this assembly is compatible with LGH 1LI series receptacles and provides reliable, threaded coupling. Mating connectors include series 727 receptacles, LGH 1LI series receptacles, and Reynolds C727 receptacle RC1535.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 2.5 Amp
Specifications Export Classification
TBD
Specifications Lgh Compatibility
LGH 1LI
Specifications Mating Connectors
Mates all series 727 receptacles and all LGH 1LI series receptacles. Also mates Reynolds C727 receptacle RC1535 ; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
727
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
25 kVDC
