73 Series Edge Mount PCB Support Screw with Self-Tapping Chassis Screw
73 Series Edge Mount PCB Support Screw with Self-Tapping Chassis Screw
SKU:01C-d68cb8
Securely attach circuit boards with 73 Series Edge Mount PCB Support Screws. Made of Nylon 66 material, ASTM-compliant, and RoHS compliant for environmental safety.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
73 Series Edge Mount PCB Support Screw with Self-Tapping Chassis Screw
$39.99
Quantity: 1
Claim Your Seller Account
73 Series Edge Mount PCB Support Screw with Self-Tapping Chassis Screw
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

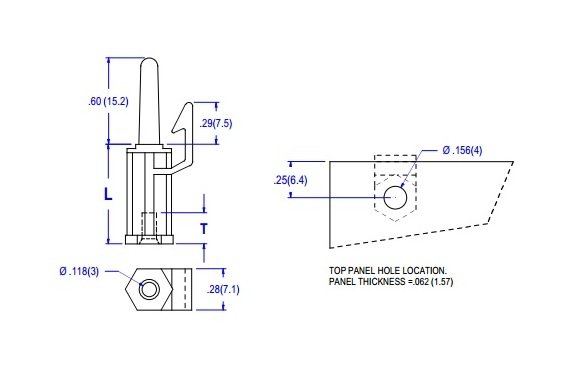

The 73 Series Edge Mount PCB Support Screw paired with a #6 Self-Tapping Chassis Screw is designed for secure attachment to .062 thick chassis. These circuit board supports are made of Nylon 66 UL94V-2 material (UL94V-0 available upon request) and meet ASTM D 4066, PA111 standards. With a temperature range of -40 to 185F (-40 to 85C), these supports ensure stability and durability in diverse environmental conditions. Each pack contains 1000 units, offering a reliable solution for circuit board mounting.
Product Specifications
Specifications Dim L
.625 (15.9) inches (mm)
Specifications T Inches Mm
.25 (6.4)
