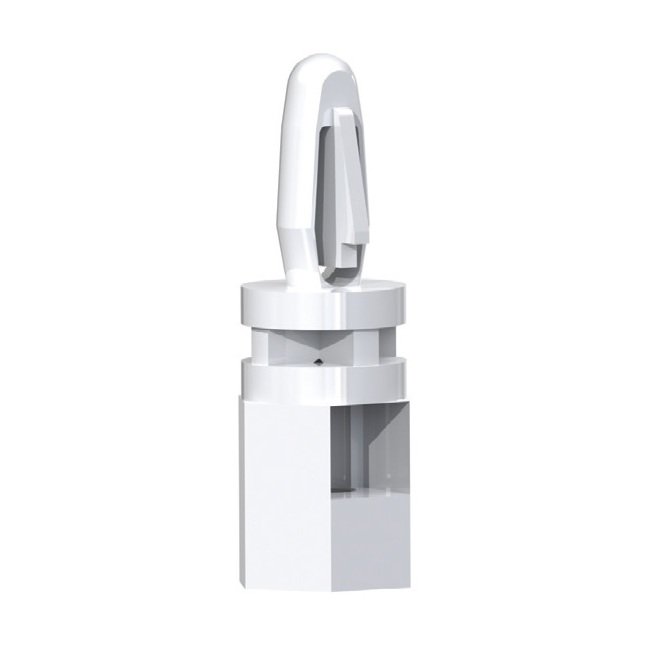

76 Series 6-32 Threaded Screw Chassis Mount Circuit Board Support
76 Series 6-32 Threaded Screw Chassis Mount Circuit Board Support
SKU:01C-0251c5
Securely mount circuit boards with the 76 Series 6-32 Threaded Screw Chassis Mount. Durable Nylon 66 construction. RoHS compliant. Temp range -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
76 Series 6-32 Threaded Screw Chassis Mount Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
76 Series 6-32 Threaded Screw Chassis Mount Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

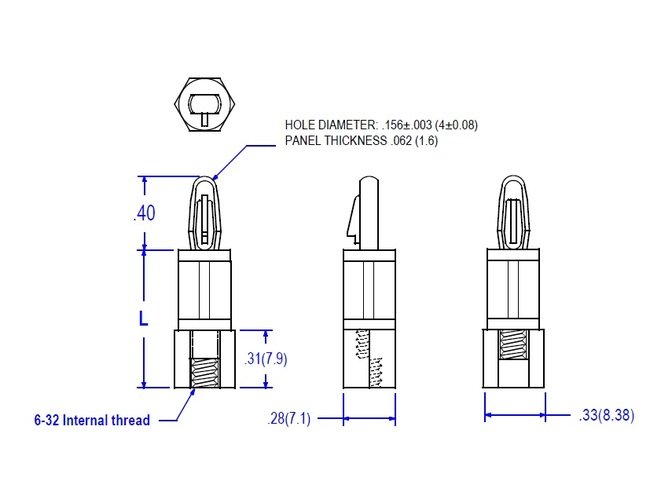

The 76 Series 6-32 Threaded Screw Chassis Mount Circuit Board Support is designed for secure and reliable mounting of circuit boards. Featuring a female#6-32 thread and a .156 PCB mounting hole, this support is made of durable Nylon 66 UL94V-2 material (UL94V-0 available) ensuring safety and longevity. With ASTM D 4066 and PA111 compliance, RoHS certification, and a temperature range of -40 to 185F (-40 to 85C), this support meets stringent industry standards.
Product Specifications
Specifications Dim L
.500 (12.7) inches (mm)
