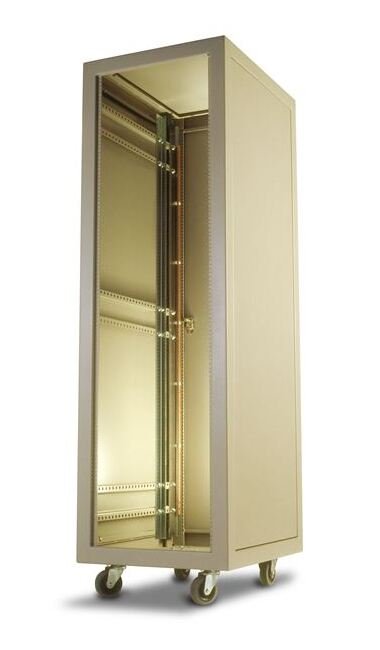

Series 7700 seismic cabinets are the ideal cabinets wherever danger of earthquake, severe shock or vibration warrant an extra heavy-duty enclosure. These cabinets are used in transportable military instrument shelters, on board ships and in nuclear power plants. Also, 7700 Series cabinets are widely used commercially on off-shore oil rigs and in communications vehicles.
Product Specifications
Additional Information
Subjected to seismic vibration tests based on curves, "Maximum Hypothetical Earthquake," Vertical and Horizontal Spectra, Building Elevation 20' - 0", and based on one percent damping ... the 7700 Series cabinet successfully passed all test requirements. Frame and panel components, including all welds, passed the tests and showed no cracks or separations. General Devices test report #72281; provides additional details.The superior strength of the 7700 Series is the result of heavy wall construction, strengthened corner posts and added longitudinal members. Channel sway bracing provides added vertical support and twist resistance. Standard 7700 Series cabinets are easily adaptable to EMI/RFI shielding.
Notes
Cabinet Frame (10 gauge C.R.S.)Removable Side Panels (inside Secured, 16 gauge C.R.S.)Removable Rear Door (16 gauge C.R.S.)Removable Top Cover (16 gauge C.R.S.)Mounting Angles (1 Pair Rear) made from 10 gauge C.R.S. with #10;-32 tapped holes per EIA RS-310 specification Finish: Zinc and Bright.Removable Bottom Cover (12 gauge C.R.S.)
Specifications Applications
Commercially on off-shore oil rigs | Communications vehicles | Nuclear power plants | On board ships | Transportable military instrument shelters

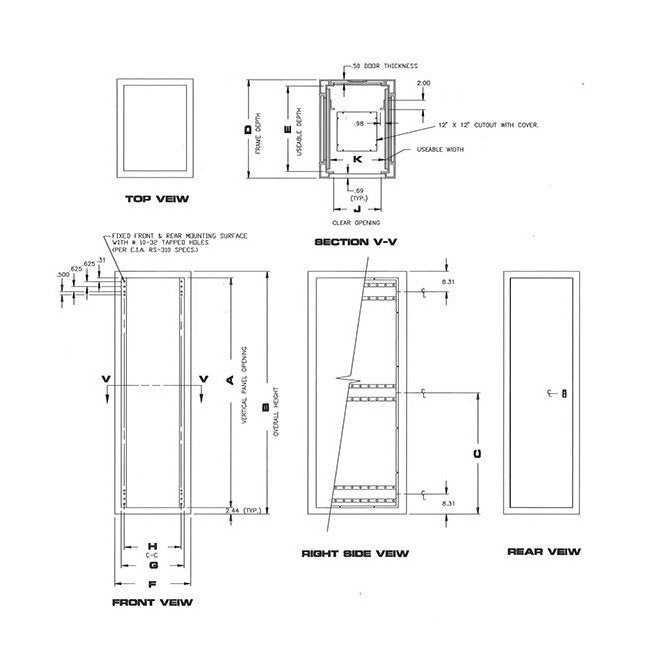

Specifications Clear Opening J
17.94 in
Specifications Color Charts
Fed Standard 595 Color Chart | RAL Color Chart
Specifications Frame Depth D
24.00 in
Specifications Frame Width F
24.00 in
Specifications Gdi Reference
Contact factory for information
Specifications Hole C C H
18.31 in
Specifications Number Of Bays
2
Specifications Options
Busbar assembly | Face mounted front door | Heavy-duty lifting eyes | Key lock | Louvered rear door bottom | Louvered rear door top | Louvered rear door top and bottom | Louvered side panel bottom | Louvered side panel top | Louvered side panel top and bottom | Louvered top pan | Louvers | Mounting "Z" rail | Mounting channel | Offset mounting channel | Power strip assembly | Rear horizontal space divider | Standard duty lifting eyes | Standard mounting angle
Specifications Overall Height B
57.50 in
Specifications Panel Height A
52.63 in (30U)
Specifications Panel Width G
19.13 in
Specifications Series
VR7700
Specifications Spec Sheets
Brochure for 7700 Series Heavy-Duty Seismic Cabinet
Specifications Strut Location C
28.75 in
Specifications Useable Depth E
22.08 in
Specifications Useable Width K
19.93 in
