773Z Aluminum Diecast Butterfly Valve
773Z Aluminum Diecast Butterfly Valve
SKU:VAL-8c0e0f
Revolutionary aluminum diecast body with patent-pending condensation prevention technology for optimal performance.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
773Z Aluminum Diecast Butterfly Valve
$549.99
Quantity: 1
Claim Your Seller Account
773Z Aluminum Diecast Butterfly Valve
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

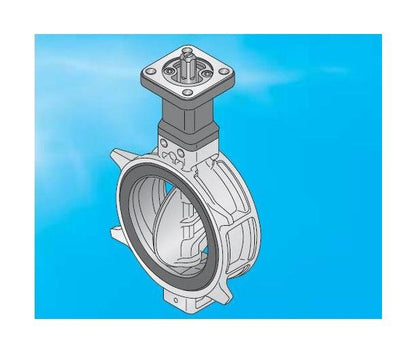

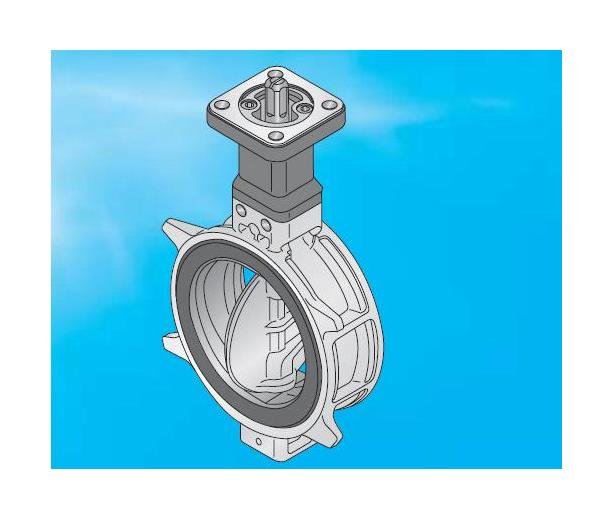

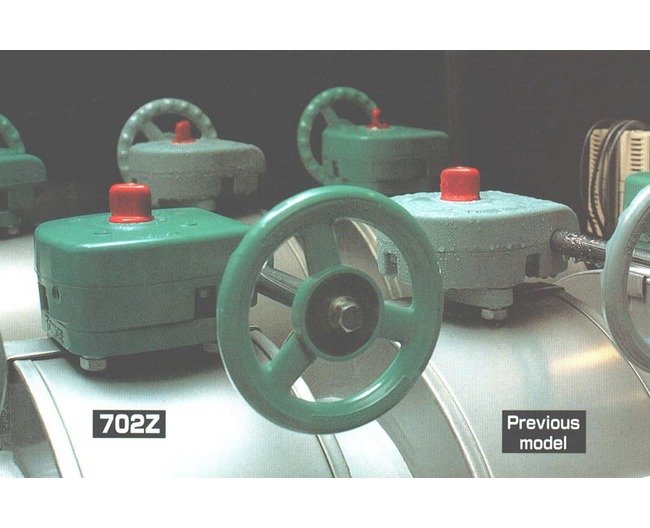

The 773Z Aluminum Diecast Butterfly Valve is a cutting-edge solution, featuring a revolutionary aluminum diecast body with a high performance engineering plastic top plate. This extended model from our popular 702Z series offers superior condensation prevention, enabling seamless auto-actuation with its ISO top flange design. With exceptional durability and performance, this valve ensures no condensation formation even under 34°C room temperature with 75% humidity on 5°C chilled water lines.
Product Specifications

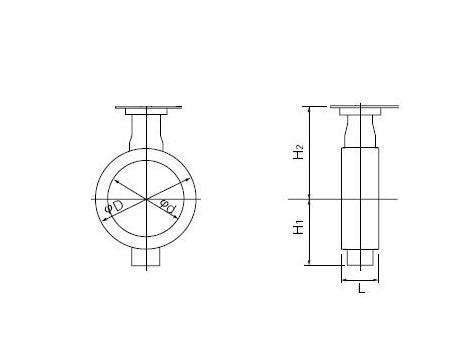

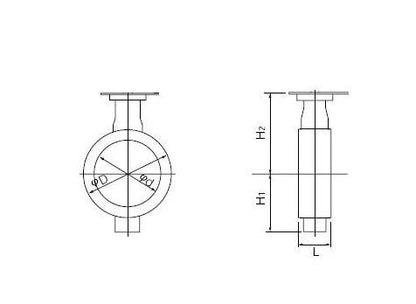

Dimensional Information D
207 mm
Dimensional Information H1
131 mm
Dimensional Information H2
202 mm
Dimensional Information L
56 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
51 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U3/4
Flange Information Ansi 125lb150lb Long Bolts Length
165 mm
Flange Information Ansi 125lb150lb Number Of Long Bolts
8
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | DIN PN10 | JIS 5K/10K
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
52 mm
Flange Information Jis 10k Effective Screw Long Bolts Length
40 mm
Flange Information Jis 10k Hexagon Boltsnuts
M20
Flange Information Jis 10k Hexagon Boltsnuts Length
130 mm
Flange Information Jis 10k Long Bolts And Nuts
M20
Flange Information Jis 10k Long Bolts Length
155 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
8
Flange Information Jis 10k Number Of Long Bolts
8
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
38 mm
Flange Information Jis 5k Effective Screw Long Bolts Length
35 mm
Flange Information Jis 5k Hexagon Boltsnuts
M16
Flange Information Jis 5k Hexagon Boltsnuts Length
115 mm
Flange Information Jis 5k Long Bolts And Nuts
M16
Flange Information Jis 5k Long Bolts Length
140 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
8
Flange Information Jis 5k Number Of Long Bolts
8

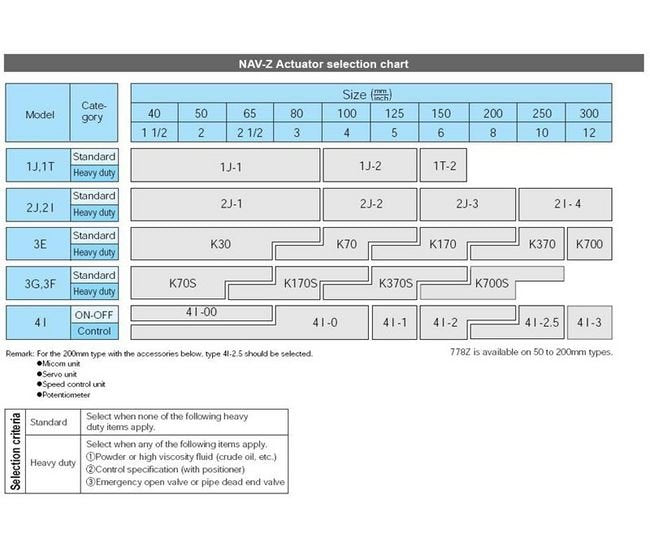

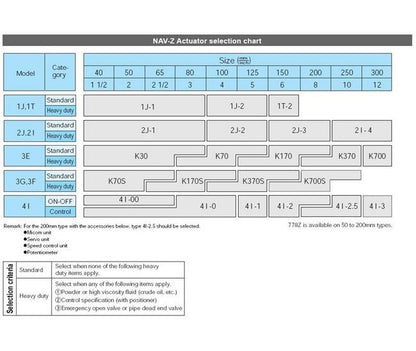

Specifications Actuators
Double Acting Pneumatic Cylinder 3E | Lock Lever | Single Acting Pneumatic Cylinder Type 3F | Single Acting Pneumatic Cylinder Type 3G | Single Phase Electric Motor | Worm Gear
Specifications Actuator Category
Control | Heavy Duty | ON-OFF | Standard
Specifications Actuator Mounting Flange
ISO 5211
Specifications Body Material
Aluminum Diecast Alloy
Specifications Body Shell Test Hydraulic
1.75 MPa
Specifications Column Material
Engineering Plastic
Specifications Cylinder Type
K170 | K370S | K700S
Specifications Design Standard
JISB2032
Specifications Direction Of Cylinder Motor
Perpendicular | Standard
Specifications Disc Material
Coated | Stainless Steel Type 316
Specifications Face To Face Dimensions
ISO 5752/JIS B2032
Specifications Seat Material
EPDM | NBR
Specifications Size
150 - 6"
Specifications Stem Material
Stainless Steel Type 420J2
