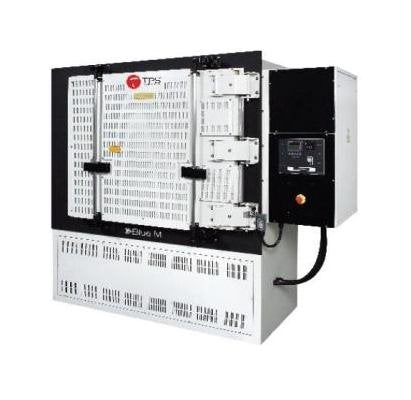

The Blue M Ultra-Temp® Inert Gas High-Temperature Oven, pressure tested at operating temperatures, is suitable for all inert gases and non-flammable forming gases (maximum 4% hydrogen, balance nitrogen).
Product Specifications
Specifications Ac Voltage
208 V | 240 V | 480 V
Specifications Engineered Options
Lead-in ports | Redundant over-temperature protection | Special control systems
Specifications Exterior Depth
38 in | 96.52 cm
Specifications Exterior Height
71 in | 180.34 cm
Specifications Exterior Width
51 in | 129.5 cm
Specifications Features
Heavy-gauge steel exterior | Exterior panels are at least 16 gauge | All welded and sealed inner chamber construction | 304 stainless steel | Full 1/2-inch steel front chamber mounting plate | Baked-on powder-coated enamel finish | Heat shielded doors for low skin temperature | Mineral wool insulation - 6 full inches | Fiberglass tadpole door gasket | Pivot-Lock™ door latch | Dual-gasket door seal design maintains seal integrity at temperatures to 593°C (1099°F) | Standard safety door switch
Specifications Frequency
50 Hz | 60 Hz
Specifications Interior Depth
20 in | 50.8 cm
Specifications Interior Height
20 in | 50.8 cm
Specifications Interior Volume
5.8 ft³
Specifications Interior Width
25 in | 63.5 cm
Specifications Line Current Per 208 Volts V At 3 Phase Per Phase
47 A
Specifications Line Current Per 240 Volts V At 3 Phase Per Phase
54 A
Specifications Line Current Per 480 Volts V At 3 Phase Per Phase
27 A
Specifications Machine Footprint
14.5 ft²
Specifications Rated Power Per 208 Volts V At 3 Phase
15.7 kW
Specifications Rated Power Per 240 Volts V At 3 Phase
21 kW
Specifications Rated Power Per 480 Volts V At 3 Phase
21 kW
Specifications Temperature Control
Adjustable flow meter and purge bypass valve | Air-cooled chamber design | Chamber pressure gauge and pressure relief valve | Forced air cooling | Gas delivery system | High-temperature blower system | Horizontal air flow | Inert gas controls | Profiling or single setpoint temperature controls | Purge timer
Specifications Ultra Temp Options
24-hour, 7-day digital timer | Circular chart recorder | Comm-Link RS-485 to RS-232 converter | Motorized exhaust damper | Reverse door hinge | Stainless steel shelves
