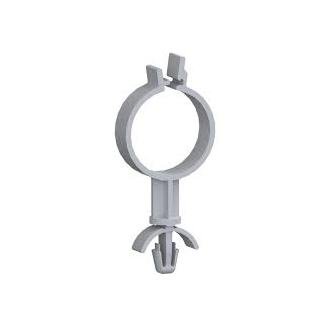

78 Series Stand-Off Locking Clip for Wire Routing
78 Series Stand-Off Locking Clip for Wire Routing
SKU:03W-3dc89d
Securely route wire bundles with the 78 Series Stand-Off Locking Clip. Ideal for panel thicknesses of .031-.078 inches, this RoHS compliant clip ensures precise mounting.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
78 Series Stand-Off Locking Clip for Wire Routing
$29.99
Quantity: 1
Claim Your Seller Account
78 Series Stand-Off Locking Clip for Wire Routing
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

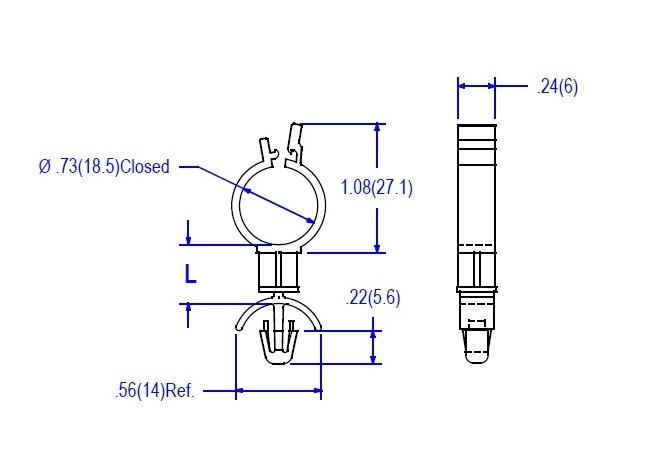

The 78 Series Stand-Off Locking Clip is expertly designed for securely routing a .750 bundle through a .187 hole on panels with thicknesses ranging from .031 to .078 inches. Each clip is made of durable Nylon 66 UL94V-2 material, ensuring reliability and compliance with RoHS standards. Ideal for wire routing applications, this clip offers precision mounting and is available with optional V-0 material upon request.
Product Specifications
Specifications L 015
.375 (9.5) inches (mm)
Specifications Mtg Hole Dia
.187 (4.8) inches (mm)
Specifications Panel Thickness Range
.031-.078 (.8-2) inches (mm)
