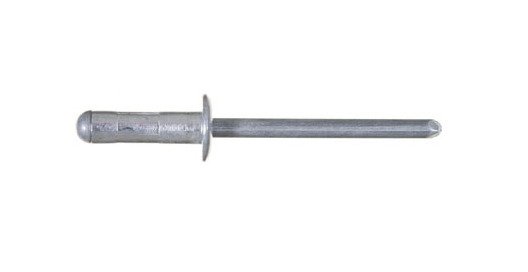

8.0mm U-Fix Aluminum Dome Head Rivet

Name: 8.0mm U-Fix Aluminum Dome Head Rivet
Brand: Ornit USA
SKU: UFI-d2517a
Price: 45.99 USD
Availability: OutOfStock

SKU:UFI-d2517a

Reliable 8.0mm U-Fix Aluminum Dome Head Rivet ideal for various applications, offering strength and durability.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 8.0mm U-Fix Aluminum Dome Head Rivet by Ornit is a premium fastening solution crafted from high-quality Aluminum Alloy ALmg 1.0. With a durable natural finish, this rivet boasts a 3.2mm diameter and 8.0mm body length, perfect for various applications. It offers a nominal shear force of 45 kgf and a nominal tensile force of 70 kgf, ensuring reliable performance. Compliant with Federal/DoD procurement standards and FAR compliance factors, this rivet meets industry-specific certifications for quality assurance.

Product Specifications

Nominal Dimensions Body Length

8.0 mm | 0.315 in

Nominal Dimensions Diameter

3.2 mm | 1/8 in

Nominal Dimensions Drillhole Size

3.3 mm | 0.130 in

Nominal Dimensions Head Diameter

6.4 mm | 0.252 in

Nominal Dimensions Head Thickness

0.95 mm | 0.037 in

Nominal Dimensions Mandrel Diameter

2.0 mm | 0.079 in

Nominal Dimensions Maximum Grip Range

4.8 mm | 0.189 in

Nominal Dimensions Minimum Grip Range

0.8 mm | 0.031 in

Nominal Forces Nominal Shear Force

45 kgf | 99 lbf

Nominal Forces Nominal Tensile Force

70 kgf | 154 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy ALmg 1.0

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

10000

Technical Specs Head Style

Dome

Technical Specs Mandrel Finish

Natural

Technical Specs Mandrel Material

Aluminum Alloy ALmg 5.0

8.0mm U-Fix Aluminum Dome Head Rivet
