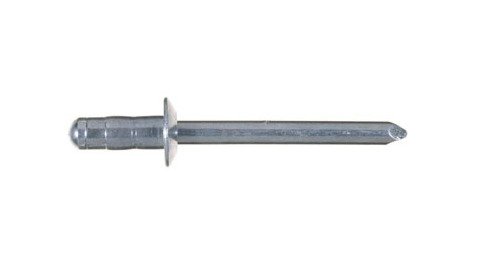

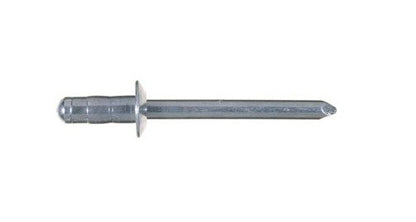

8.0mm U-Fix Steel Dome Head Rivet
8.0mm U-Fix Steel Dome Head Rivet
SKU:UFI-a44bdc
High-quality 8.0mm steel dome head rivet for strong and secure fastening in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
8.0mm U-Fix Steel Dome Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
8.0mm U-Fix Steel Dome Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 8.0mm U-Fix All Steel Dome Head Rivet is a high-quality fastening solution suitable for a wide range of industrial applications. Manufactured with low carbon steel and zinc-plated chromium VI-free finish, this rivet ensures exceptional durability and corrosion resistance. With a nominal shear force of 154kgf and nominal tensile force of 175kgf, it provides reliable strength for various fastening needs. The dome head design offers a secure grip and a professional finish, making it ideal for both consumer and institutional use.
Product Specifications
Nominal Dimensions Body Length
9.0 mm | 0.354 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.32 to 3.40 mm | 0.130 to 0.134 in
Nominal Dimensions Head Diameter
7.2 mm | 0.283 in
Nominal Dimensions Head Thickness
0.85 mm | 0.033 in
Nominal Dimensions Mandrel Diameter
2.1 mm | 0.083 in
Nominal Dimensions Maximum Grip Range
4.0 mm | 0.157 in
Nominal Dimensions Minimum Grip Range
1.1 mm | 0.043 in
Nominal Forces Nominal Shear Force
154 kgf | 340 lbf
Nominal Forces Nominal Tensile Force
175 kgf | 385 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
