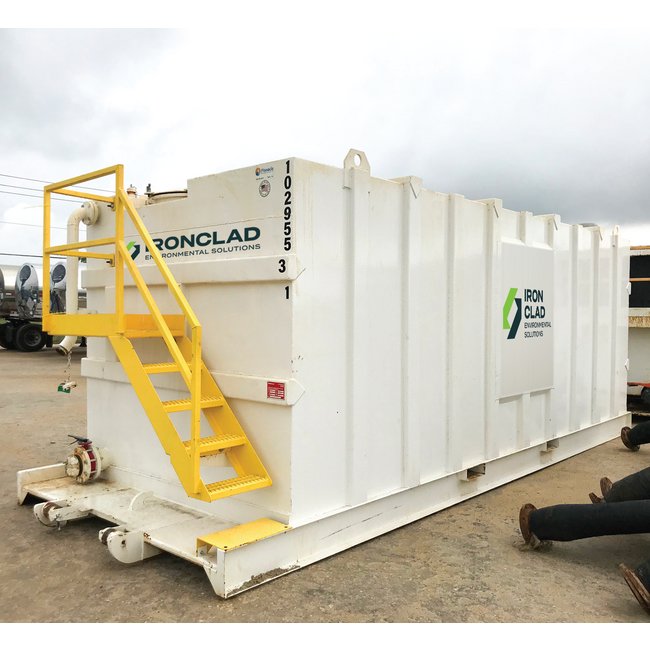

8,400 Gal Steel Mini Frac Tank with Coil
8,400 Gal Steel Mini Frac Tank with Coil
SKU:TAN-cd89fe
Compact and robust steel mini frac tank with coil for efficient industrial operations.
Regular price
$16,999.99
Regular price
Sale price
$16,999.99
Unit price
per
Initiate Order
8,400 Gal Steel Mini Frac Tank with Coil
$16,999.99
Quantity: 1
Claim Your Seller Account
8,400 Gal Steel Mini Frac Tank with Coil
$16,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 8,400 Gallon Steel Mini Frac Tank with Coil is a versatile solution tailored for compact spaces in refineries, construction, and manufacturing sites. Featuring sturdy construction with 1/4 in. A36 plate walls and floor, it offers a reduced footprint while providing exceptional functionality. Equipped with multiple drain valves, manways, and steam coils, this tank ensures efficient operations and easy maintenance. With a capacity of 8,327 gal and compliant with various industry standards, this tank is a reliable choice for demanding environments.
Product Specifications
Construction Floor
1/4 in. A36 Plate
Construction Long Sill
6 x 2 x 1/4 in. Tubing
Construction Walls
1/4 in. A36 Plate
Construction X Members
1/4 in. A36 Plate
Dimensions And Weight Capacity
8,327 gal | 200 BBL
Dimensions And Weight Height
8 ft 5-9/16 in.
Dimensions And Weight Length
23 ft 2 in.
Dimensions And Weight Tare Weight
15,000 lb
Dimensions And Weight Width
8 ft 5 in.
Features Blind Flange
One 4 in. (Rear)
Features Fill Line
One 3 in. with Nipple and End Cap (Roof/Front)
Features Fork Pockets
12 x 6
Features Manways
22 in. Manways in The Front, Top, and Curb
Features Steam Coils
2 in. Schedule (SCH) 40 with 2 in. 150 lb Flanges (Blind)
Features Valves
One 4 in. Drain (Rear) | Two 4 in. Drain (Front) | One 8 in. P/V Valve (Roof)
Technical Specs Brands
IRONCLAD Environmental Solutions
