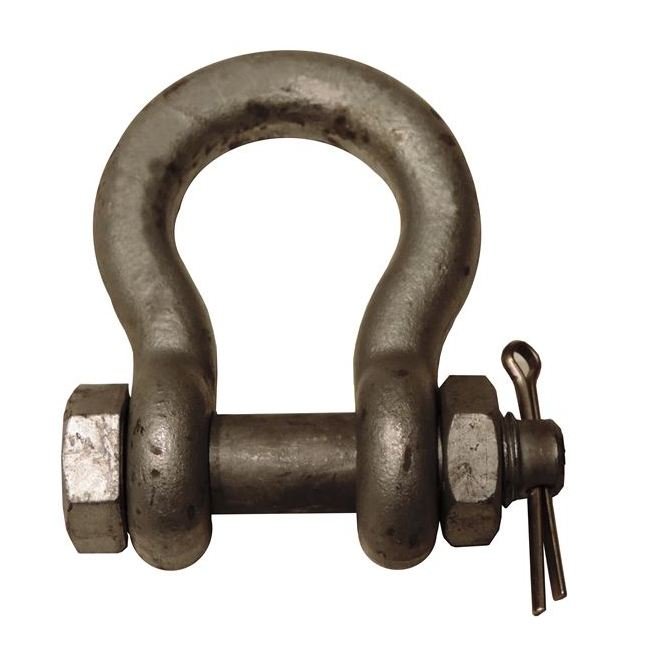

The 8.5 Tons Bolt Type Shackles Bow Type (Anchor) are crafted to meet the stringent requirements of Federal Specification RR-C-271D, Type IVA or Type IVB, Grade A, Class 3. With a quenched and tempered alloy pin, these shackles boast a proof load capacity 2.2 times the working load limit and an ultimate load capacity 6 times the working load limit. Ideal for wire rope loops used in lifting or towing applications.

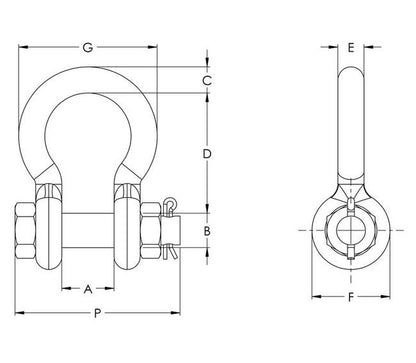

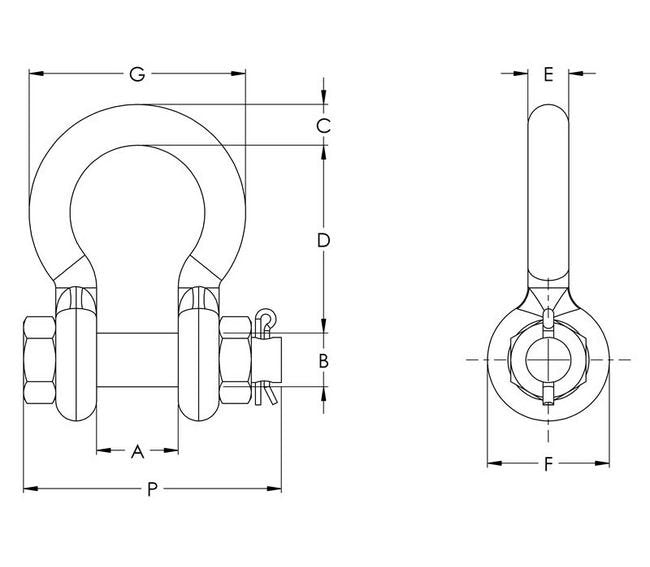

Product Specifications
Specifications A In
1.69
Specifications B In
1.13
Specifications Cross Reference
SAS1
Specifications C In
1.06
Specifications D In
3.75
Specifications E In
1
Specifications F In
2.38
Specifications G In
4.69
Specifications Nominal Size In
1
Specifications P In
5.31
Specifications Weight Lbs
5.66
Specifications Wll Tons
8.5
CAGE
0T9L4
NAICS
332722
PSC
5306
