8-Bar Conductor Bar Expansion Section
8-Bar Conductor Bar Expansion Section
SKU:CRA-7e2674
Enhance your 8-Bar Conductor Bar system with the durable 10 ft Expansion Section, meeting all electrical and mechanical requirements.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
8-Bar Conductor Bar Expansion Section
$289.99
Quantity: 1
Claim Your Seller Account
8-Bar Conductor Bar Expansion Section
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

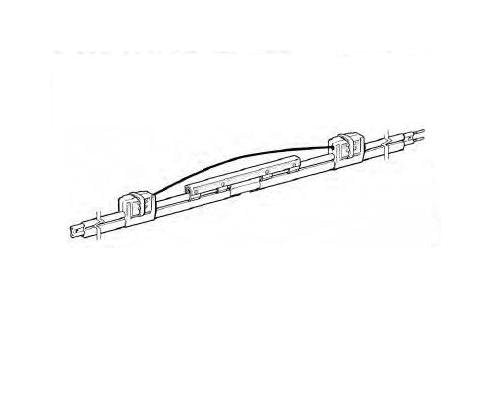

The 10 ft Expansion Section for 8-Bar Conductor Bar systems is a crucial component required every 300 feet for steel conductors. Featuring a robust design with a stainless clad copper laminate material, it ensures durability and reliability in demanding industrial settings. This Expansion Section comes equipped with factory-installed power feeds and flexible jumpers, meeting both electrical and mechanical requirements for seamless integration into your system. With an amperage rating of 250 A and operational stability in a wide ambient temperature range from -60 to 400 °F, this Expansion Section is designed to optimize performance and safety.
Product Specifications
Specifications Amperage Rating
250 A
Specifications Length
10 ft
Specifications Material
Stainless Clad Copper Laminate
Specifications Normal Ambient
-60 to 400 ºF
Specifications Weight
9.2 lb
