8-Bar Conductor Bar Expansion Section
8-Bar Conductor Bar Expansion Section
SKU:CRA-70431e
Essential expansion section with power feeds and jumpers for steel conductors, designed for optimal electrical and mechanical system requirements.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
8-Bar Conductor Bar Expansion Section
$249.99
Quantity: 1
Claim Your Seller Account
8-Bar Conductor Bar Expansion Section
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

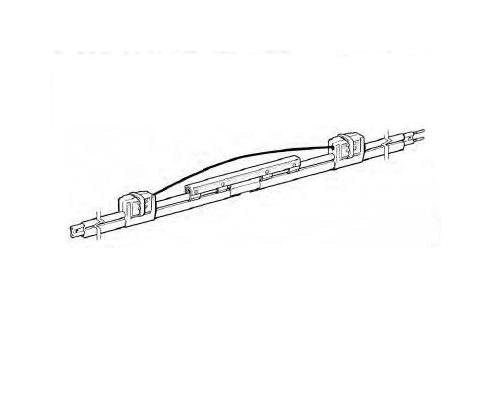

The 8-Bar Conductor Bar Expansion Section is a vital component required every 300 feet for steel conductors. This section features factory-installed power feeds and flexible jumpers, meticulously designed to meet both the electrical and mechanical requirements of your system. With an amperage rating of 250A, made from durable stainless clad copper laminate, and weighing 8.5 lbs, this 10 ft section operates smoothly in normal ambient temperatures ranging from -10 to 160°F. Ensure seamless power distribution by integrating this expansion section into your conductivity system.
Product Specifications
Specifications Amperage Rating
250 A
Specifications Length
10 ft
Specifications Material
Stainless Clad Copper Laminate
Specifications Normal Ambient
-10 to 160 ºF
Specifications Weight
8.5 lb
