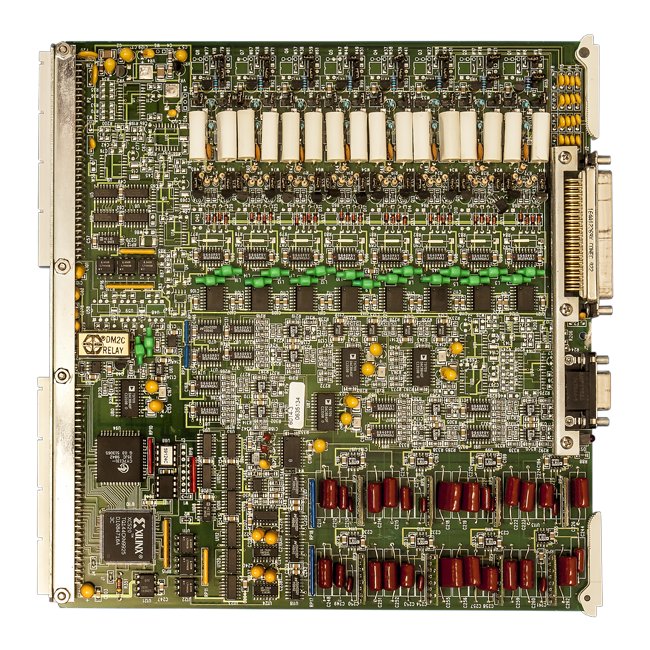

8-Channel Accelerometer Amplifier-Filter-Digitizer for Institutional Use
8-Channel Accelerometer Amplifier-Filter-Digitizer for Institutional Use
SKU:INT-3f6892
High-performance 8-Channel Accelerometer Amplifier-Filter-Digitizer with precise signal processing & compliance for government procurement.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
8-Channel Accelerometer Amplifier-Filter-Digitizer for Institutional Use
$249.99
Quantity: 1
Claim Your Seller Account
8-Channel Accelerometer Amplifier-Filter-Digitizer for Institutional Use
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 8-Channel Accelerometer Amplifier-Filter-Digitizer is a robust integrated solution designed for precise data acquisition in institutional settings. With programmable gains from 1 to 5,000, 16-bit resolution, and sample rates up to 10 kS/s per channel, this module ensures accurate signal processing. It features automatic zero & gain calibration, a four-pole low pass filter, and two alarms with programmable limits. Meeting ICP/IEPE standards, this module offers versatile AC or DC inputs, excitation power for transducers, and compatibility with low impedance piezoelectric sensors. With NIST standards relevance and compliance with federal procurement standards, this module is a reliable choice for government and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth Ac
0.5 Hz to 5 kHz for gains 1 to 100. 0.5 Hz to 1 kHz for gains above 100 (-3 dB).
Amplifier Bandwidth Dc
DC to 5 kHz for gains 1 to 100. DC to 1 kHz for gains above 100 (-3 dB).
Amplifier Cm Voltage
±10 V
Amplifier Common Mode
60 dB plus gain in dB up to 110 dB, DC to 60 Hz.
Amplifier Gain
Programmable 1-5000, in 1, 2, 3, 5 steps, with ±0.05% accuracy.
Amplifier Gain Stability
±0.01%, ±0.005%/ºC.
Amplifier Linearity Amplifier
±0.01% for gains 1 to 1,000, ±0.02% for gains above 1,000.
Amplifier Noise 10 Hz
0.5 µV peak, RTI.
Amplifier Noise 1 Khz
1.5 µV peak, RTI
Amplifier Recovery
800 µS to ±0.1% for 10X overload to ±10 V.
Amplifier Source Current
±2 nA, ±0.01 nA/ºC.
Amplifier Zero Amplifier
Automatic to ±1 mV RTI, ±0.5 mV RTO.
Amplifier Zero Stability
±2 µV RTI, ±1 mV RTO. ±1 µV/ºC RTI,±0.2 mV/ºC RTO. Short term: ±2 µV RTI,±0.04 mV RTO for 8 hours.
Calibration Voltage Substitution
Alternate input for external voltage standard. Programmable attenuation steps of 1, 0.1, and 0.01 with ±0.02% accuracy. Output of attenuator is provided for calibration.
Calibration Zero Calibration
Amplifier input disconnected and shorted.
Digitizer Alarms
Two alarms each with upper and lower limits that are programmable from negative to positive full scale. Limits checked on each ADC sample.
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Digitizer Linearity
±2 LSB (±0.006%)
Digitizer Resolution
16-bits, two's complement output.
Digitizer Sample
Simultaneous sample and hold with ±50 nS channel-to-channel. Droop is less than ±0.005%.
Digitizer Sample Rate
Up to 10 kS/s per channel | Up to 10 kS/s
Excitationtransducer Power Level
2 to 20 mA set by resistor for each channel. Factory set to 6 mA. Compliance is 24-28 Volts. Requires optional supply for the enclosure.
Excitationtransducer Power Supply
Internal on Series 6000 enclosures.
Filter Frequency
Plug-in, 40 Hz to 5 kHz, 1 kHz supplied.
Filter Noise
2 mV peak, RTO.
Filter Other
Other filter characteristics and cut offs are available.
Filter Type Filter
Four-pole, low-pass Butterworth.
Input Ac Coupled
100K Ohms
Input Configuration
8 channels, differential, 2-wire with shield.
Input Dc Coupled
50 Megohms, shunted by 1,000 pF.
Input Protection
±50 Volts differential, ±30 Volts common mode.
Input Range
±100 mV to ±10 Volts (±2 mV to ±10 Volts with reduced bandwidth).
Input Type Input
Jumper selection of AC or DC input coupling.
Mechanical Connectors
Input connector is 50-pin Type D. Connectors are mounted on the front and mates are supplied.
Mechanical Mounting
Occupies one slot in Series 6000 enclosures.
Mechanical Operating Temperature
0 to +50 ºC
Ordering Information Ordering Information
6014 - 8-Ch Accelerometer Amplifier-Filter-Digitizer. | 6081 - Screw Terminal Adapter.
Overview Analog Bandwidth
1 kHz
Overview Analog Output
Monitor Output
Overview Excitationtransducer Power
ICP
