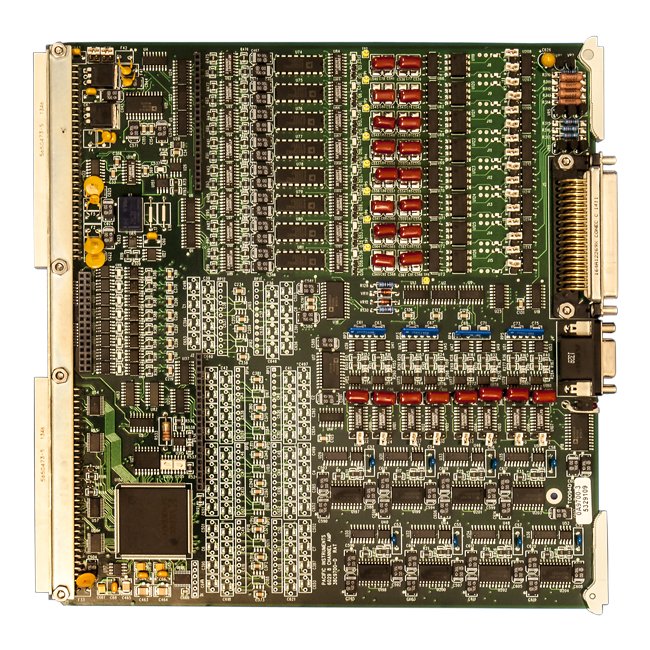

The 8-Channel IEPE Amplifier-Filter-Analog Output is a versatile signal conditioning solution designed to meet the rigorous requirements of both consumer and institutional buyers. This module features programmable AC/DC inputs with gains ranging from 1 to 5,000, offering exceptional accuracy of ±0.05%. With 4, 6, or 8-pole low-pass filters and a 100 kHz signal bandwidth, it ensures precise and clean signal processing. Each channel comes with buffered analog output, selectable for wideband or filtered response, eliminating crosstalk between channels. Ideal for IEPE transducers and various voltage measurements, this amplifier offers unmatched reliability and performance.
Product Specifications
Amplifier Analog Output Amplifier
±10 Volts full scale, 20 mA. Programmable for wideband or filtered response.Buffered Analog Output.
Amplifier Bandwidth
DC to 100 kHz (-3 dB). 1 Hz to 100 kHz (-3 dB) in AC coupled mode.
Amplifier Cm Voltage
±10 V
Amplifier Common Mode
60 dB plus gain in dB to 110 dB, DC to 60 Hz.
Amplifier Gain
Programmable 1 to 5000, in 1, 2, 3, 5 steps, with ±0.05% accuracy
Amplifier Gain Stability
±0.01%, ±0.005%/ºC.
Amplifier Linearity Amplifier
±0.01% for Gains < 1,000, ±0.02% for gains > 1,000.
Amplifier Noise X1
0.4 mV RMS for 20 kHz bandwidth.
Amplifier Noise X1000
2.8 mV RMS for 20 kHz bandwidth.
Amplifier Slew Rate
3.2 V/µS
Amplifier Zero
Automatic to ±1 mV.
Amplifier Zero Stability X1
±1 mV, ±0.2 mV/ºC
Amplifier Zero Stability X1000
±5 mV, ±1 mV/ºC
Calibration Voltage Substitution
Alternate input for external calibration source. Programmable 1, 0.1 and 0.01, attenuation with ±0.02% accuracy. Attenuator output may be connected to output bus for accuracy check.
Calibration Zero Calibration
Amplifier input disconnected and shorted for zero calibration.
Digitizer Alarms
Two alarms each with upper and lower limits that are programmable from negative to positive full scale. Limits checked on each ADC sample.
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Digitizer Linearity
±1-1/2 LSB (±0.004%)
Digitizer Rate
Programmable up to 200 kS/s digitizer per channel.
Digitizer Resolution
16-bits, two's complement output per channel.
Digitizer Sample
±50 ns channel-to-channel time correlation.
Excitationtransducer Power Current
2 to 20 mA. 6 mA is supplied unless otherwise specified.
Excitationtransducer Power Minimum Compliance
24 V
Excitationtransducer Power Verification
Short and open detection.
Excitationtransducer Power Voltage
±12 or ±15 Volts jumper selectable per channel, ±24 also available.
Filter Frequency
From 250 Hz to 50 kHzStandard Four Pole: 10 kHz4 Frequency Four Pole: 10 Hz, 1 kHz, 10 kHz, 20 kHz2 Frequency Eight Pole: 2 kHz and 20 kHz.
Filter Noise
1 mV peak, RTO.
Filter Other
Other filter characteristics and cut offs are available.
Filter Type
Single frequency four-pole (standard) or 4 frequency four-pole or 2 frequency eight-pole Bessel.
Input Configuration
8 channels, differential, 2-wire with shield.
Input Impedance Ac
100k Ohms, shunted by 1,000 pF.
Input Impedance Dc
50 Megohms, shunted by 500 pF.
Input Input Type
Programmable AC or DC input. Input attenuator and current input are available.
Input Protection
±50 Volts differential, ±30 Volts common mode.
Input Range
±2 mV to ±10 Volts.
Mechanical Connectors
Input connector is 50-pin Type D. Output is 15-pin Type D High Density. Mating connectors are supplied.
Mechanical Mounting
Occupies one slot in Series 6000 enclosures.
Mechanical Temperature
0 to +50 ºC
Overview Analog Bandwidth
100 kHz
Overview Excitationtransducer Power
+/-12V | +/-15V | 24V | ICP
