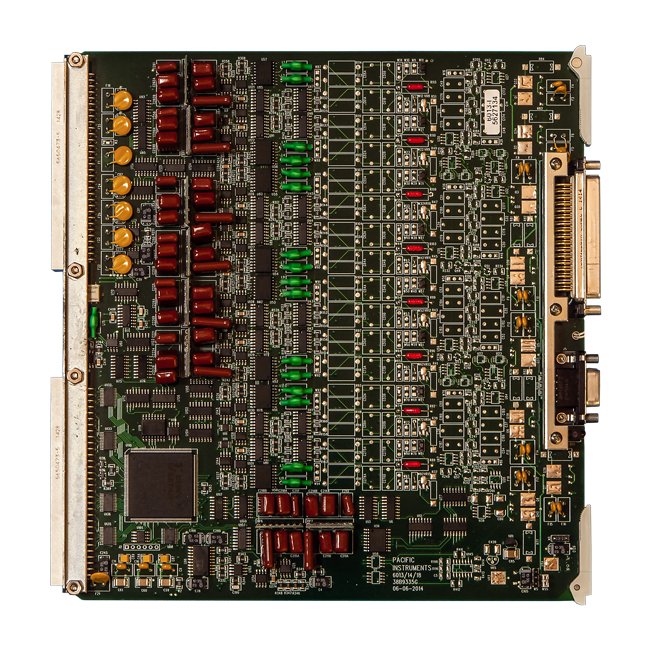

The 8-Channel Instrumentation Amplifier-Filter-Digitizer System is a versatile solution for integrated conditioning, acquisition, and control applications. This system features programmable gains from 1 to 5,000 with exceptional 0.05% accuracy, automatic zero and gain calibration, four-pole low-pass filtering, and up to 10 kS/s per channel digitization at 16-bit resolution. With inputs for voltage, thermocouples, and DC-LVDT, optional thermocouple reference junction box, and two alarms with programmable limits, this system ensures precise data acquisition. It meets the stringent requirements of institutional buyers seeking reliable and high-performance instrumentation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth
1 kHz | -3 dB
Amplifier Cm Voltage
±10 V
Amplifier Common Mode
60 dB plus gain in dB to 110 dB, DC to 60 Hz.
Amplifier Gain
Programmable 1-5000, in 1, 2, 3, 5 steps, with ±0.05% accuracy.
Amplifier Gain Stability
±0.01%, ±0.005%/ºC.
Amplifier Linearity Amplifier
±0.01% for gains 0.1 to 1,000, ±0.02% for gains above 1,000.
Amplifier Monitor Output
±3.0 Volts full scale, unfiltered.
Amplifier Noise 10 Hz
0.1 µV rms, RTI, 0.5 mV rms, RTO
Amplifier Noise 1 Khz
1.0 µV rms, RTI, 0.5 mV rms, RTO
Amplifier Recovery
800 µS to ±0.1% for 10X overload to ±10 V.
Amplifier Source Current
±10 nA, ±1 nA/ºC.
Amplifier Zero Amplifier
Automatic to ±1 µV RTI, ±0.5 mV RTO.
Amplifier Zero Stability
±5 µV RTI, ±1 mV RTO. ±1 µV/ºC RTI,±0.2 mV/ºC RTO. Short term: ±2 µV RTI,±0.4 mV RTO for 8 hours.
Calibration Voltage Substitution
Alternate input for external voltage standard. Programmable attenuation steps of 1, 0.1, and 0.01 with ±0.02% accuracy. Output of the attenuator is provided on a rear panel connector for calibration.
Calibration Zero Calibration
Amplifier input disconnected and shorted.
Digitizer Alarms
Two alarms each with upper and lower limits that are programmable from negative to positive full scale. Limits checked on each ADC sample.
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Digitizer Linearity
±2 LSB (±0.006%)
Digitizer Resolution
16-bits, two's complement output.
Digitizer Sample
Simultaneous sample and hold with ±50 nS channel-to-channel. Droop is less than ±0.005%.
Digitizer Sample Rate
Up to 10 kS/s per channel | 10 kS/s
Excitationtransducer Power Current
50 mA per channel, limited to 200 mA maximum per 8-channel module.
Excitationtransducer Power Voltage
Regulated ±12 or ±15 Volts jumper selectable per channel (6013). 28 Volts (6013-24V).
Filter Frequency
Plug-in, 4 Hz to 1 kHz, 10 Hz supplied. Alternate fiter characteristics and frequencies are available.
Filter Other
Other filter characteristics and cut offs are available.
Filter Type Filter
Four-pole, low-pass Butterworth.
Input Attenuator
100:1, ±0.2% (6013-HV).
Input Configuration Current Inputs
Differential, 2 wire with shield.
Input Configuration Input
8 channels, differential, 2 wire with shield.
Input Configuration Thermocouple Inputs
Differential, 2 wire with shield.
Input Impedance
50 Megohms, shunted by 1,000 pF (1 Megohm with attenuator)
Input Protection
±50 Volts differential, ±30 Volts common mode. ±250 Volts differential with attenuator.
Input Range
±2 mV to ±10 Volts (±200 mV to ±100 V with optional attenuator).
Input Termination Current Inputs
200 Ohms
Input Type Current Inputs
4-20 mA input.
Input Type Thermocouple Inputs
B, C, E, J, K, N, R, S, and T.
Mechanical Connectors
Input connector is 50-pin Type D. Connectors are mounted on the front and mates are supplied.
Mechanical Mounting
Occupies one slot in Series 6000 enclosures.
Overview Analog Bandwidth
1 kHz
Overview Excitationtransducer Power
±12V | ±15V | 24V
