8-Channel Strain/Bridge Transducer Amplifier-Filter-Digitizer
$2,799.99
Quantity: 1
Claim Your Seller Account
8-Channel Strain/Bridge Transducer Amplifier-Filter-Digitizer
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

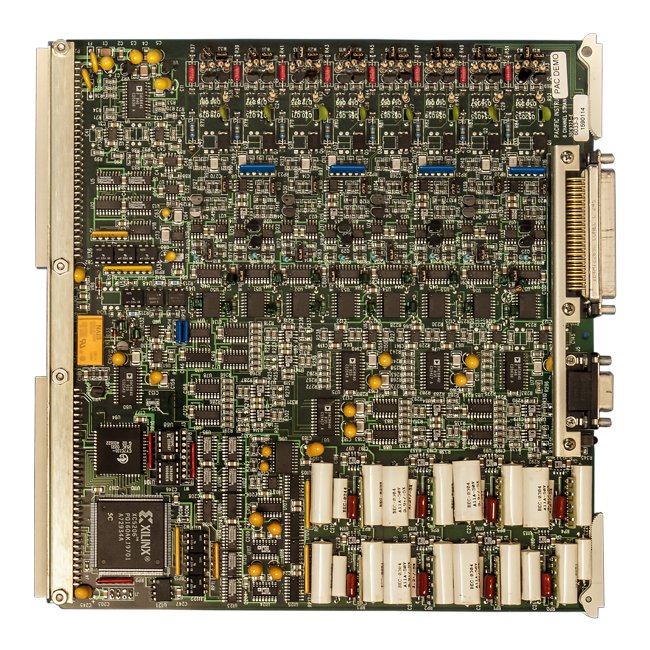

The 8-Channel Strain/Bridge Transducer Amplifier-Filter-Digitizer, model 6033, is a high-precision integrated solution for transducer signal conditioning and digitization. With features such as bridge conditioning, voltage excitation up to 12V, automatic zero and balance, programmable gains from 1 to 5,000, and a four-pole low-pass filter, this system ensures accurate data acquisition at a sample rate of up to 10 kS/s per channel with 16-bit resolution. Ideal for strain gages and various transducers, the 6033 meets stringent institutional procurement requirements with individual channel regulators, dual programmable alarms, and wideband analog outputs for monitoring flexibility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth
1 kHz | -3 dB
Amplifier Common Mode
60 dB plus gain in dB up to 106 dB, DC to 60 Hz for ±10 Volts.
Amplifier Gain
Programmable from 1 to 5,000 in 1, 2, 3, 5 steps with ±0.05% accuracy.
Amplifier Gain Stability
±0.01%, ±0.004%/ºC.
Amplifier Linearity Amplifier
±0.01% for gains < 1,000, ±0.02% for gains 1,000 and higher.
Amplifier Noise 10 Hz
0.5 µV peak, RTI.
Amplifier Noise 1 Khz
1.5 µV peak, RTI
Amplifier Recovery
800 µS to ±0.1% for 10X overload to ±10 V.
Amplifier Source Current
±2 nA, ±0.01 nA/ºC
Amplifier Zero Amplifier
Automatic to ±1 µV RTI, ±0.5 mV RTO.
Amplifier Zero Stability
±5 µV RTI, ±1 mV RTO, ±1 µV/ºC RTI,±0.2 mV/ºC RTO. Short term: ±2 µV RTI,±0.4 mV RTO for 8 hours.
Calibration Shunt
Programmable single shunt, 0.502 mV/V (350 Ohm bridge), ±1% installed.
Calibration Voltage Substitution
Alternate amplifier input for external voltage standard. Programmable attenuator steps of 1, 0.1 and 0.01 with ±0.02% accuracy. Output of the attenuator provided on rear panel connector for calibration.
Calibration Zero Calibration
Amplifier input disconnected and shorted.
Digitizer Alarms
Two alarms each with upper and lower limits that are programmable from negative to positive full scale. Limits checked on each ADC sample.
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Digitizer Linearity
2 LSB (0.006%)
Digitizer Resolution
16-bits, two's complement output.
Digitizer Sample
Simultaneous, within ±50 nS channel-to-channel. Droop is less than ±0.005%.
Digitizer Sample Rate
Up to 10 kS/s per channel | Up to 10 kS/s
Excitationtransducer Power Current
50 mA, limited to 70 mA. Short on one channel will not affect other channels.
Excitationtransducer Power Excitation Noise
200 µV peak-to-peak.
Excitationtransducer Power Monitor
Voltage or current selected by jumper plug.
Excitationtransducer Power Regulation
±0.2% line and no-load to full-load measured at the input connector.
Excitationtransducer Power Stability
±0.01%, ±0.005 %/ºC
Excitationtransducer Power Voltage Excitation
Programmable for 8 channels from 0 to 12 Volts with 3.3 mV resolution. Calibrated 1 Volt ±0.1% steps.
Filter Frequency
Plug-in, 4 Hz to 1 kHz, 10 Hz supplied.
Filter Noise
2 mV peak RTO.
Filter Other
Other filter characteristics and cut offs are available.
Filter Type
Four-pole, low-pass Butterworth.
Input Balance
Automatic by program control. Balance accuracy ±0.05% of range, ±1 mV RTO. Stability ±0.02% for 8 hours, ±0.005 %/ºC. Range set by resistor up to 10 mV/V, 2 mV/V (350 Ohms) is installed.
Input Configuration
8 channels, 2 to 4 wires plus shield for bridge and voltage. Input configured by plug-in jumpers.
Input Impedance
50 Megohms, shunted by 1,000 pF.
Input Protection
±50 Volts differential, ±30 Volts common mode.
Mechanical Connectors
Input connectors are 50-pin Type D. Mates are supplied
Mechanical Mounting
Occupies one slot in Series 6000 enclosures.
Mechanical Operating Temperature
0 to +50 ºC
Ordering Information Ordering Information
6033 - 8-Ch Strain-Bridge, 4-Wire Input. | 6081 - Screw Terminal Adapter. | 6082 - RJ45 Plug Adapter with Bridge Completion for 120, 350 and 1,000 Ohm Gages.
Overview Analog Bandwidth
1 kHz
Overview Excitationtransducer Power
Voltage
