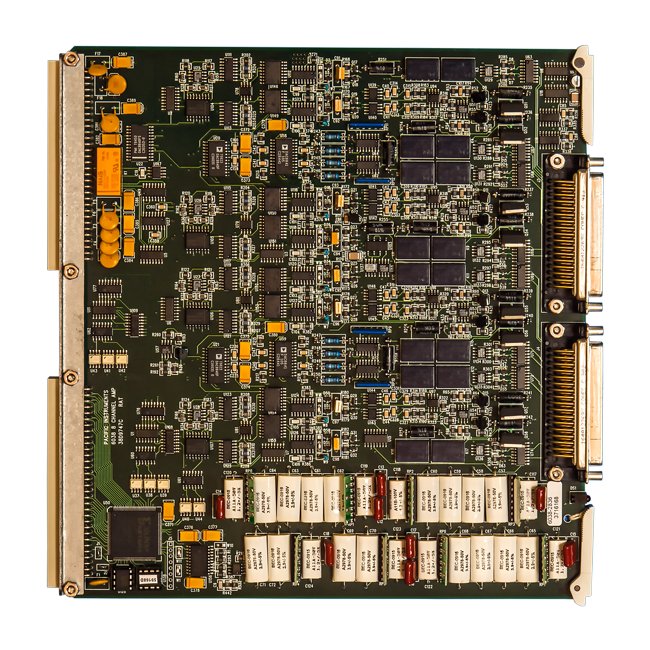

The 8-Channel Strain/Bridge Transducer Amplifier-Filter-Digitizer is a cutting-edge solution for precise signal conditioning in data acquisition applications. Featuring programmable input configuration, automatic zero and balance, gains up to 5,000, and a four-pole low-pass filter, this module ensures high accuracy with 16-bit resolution. With versatile compatibility for 1/4, 1/2, and full bridge transducers, potentiometers, and low-level voltage signals, it is ideal for strain gauges and bridge transducers. The programmable excitation, remote sensing, and calibration capabilities, combined with dual alarms for limit monitoring, make it a reliable choice for demanding measurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth
1 kHz | -3 dB
Amplifier Common Mode
60 dB plus gain in dB up to 106 dB, DC to 60 Hz for ±10 Volts.
Amplifier Gain
Programmable from 1 to 5,000 in 1, 2, 3, 5 10 steps with ±0.05% accuracy.
Amplifier Gain Stability
±0.01%, ±0.004%/ºC.
Amplifier Linearity Amplifier
±0.01% for gains < 1,000, ±0.02% for gains 1,000 and higher.
Amplifier Noise 1 Khz
0.5 µV rms, RTI
Amplifier Recovery
800 µS to ±0.1% for 10X overload to ±10 V.
Amplifier Source Current
±2 nA, ±0.01 nA/ºC.
Amplifier Zero Amplifier
Automatic to ±1 µV RTI, ±0.5 mV RTO.
Amplifier Zero Stability
±5 µV RTI, ±1 mV RTO, ±1 µV/ºC RTI, ±0.2 mV/ºC RTO. Short term: ±2 µV RTI, ±0.4 mV RTO for 8 hours.
Calibration Shunt
Single step shunt of internal completion resistor or external strain gage or bridge arm using dedicated input connector pins. Installed shunt resistor provides 0.502 mV/V (350 Ohm) or 0.172 mV/V (120 Ohm) ±0.5%.
Calibration Voltage Substitution
Alternate input for external calibration source. Programmable attenuator with steps of 1, 0.1 and 0.01, ±0.01% accuracy. Output of the attenuator is provided for calibration.
Calibration Zero Calibration
Amplifier input disconnected and shorted.
Digitizer Alarms
Two alarms each with programmable upper and lower limits and persistence checked on each ADC sample.
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Digitizer Linearity
±2 LSB (±0.006%)
Digitizer Resolution
16-bits, two's complement output.
Digitizer Sample
Simultaneous, within ±50 nS using sample & hold amplifier. Droop is less than ±0.005%.
Digitizer Sample Rate
0 to 10 kS/s per channel. | Up to 10 kS/s
Excitationtransducer Power Current
50 mA limited to 70 mA.
Excitationtransducer Power Excitation Noise
200 µV peak-to-peak.
Excitationtransducer Power Monitor
Calibration mode applies excitation voltage to the amplifier input.
Excitationtransducer Power Regulation
±0.01% for ±10% line and no-load to full-load using remote sensing. Operation reverts to local sense if sense leads are not connected.
Excitationtransducer Power Stability
±0.01%, ±0.005 %/ºC.
Excitationtransducer Power Voltage Excitation
Programmable from 0-12 Volts in 1 Volt ±0.1% steps, with 3.3 mV resolution adjustment.
Filter Frequency
Plug-in, 1 Hz to 1 kHz, 10 Hz supplied.
Filter Noise Filter
0.5 mV rms, RTO.
Filter Other
Other filter characteristics and cut offs are available.
Filter Type
Four pole, low pass Butterworth.
Input Balance
Automatic by program control. Balance accuracy ±0.05% of range, ±1 mV RTO. Stability ±0.02% for 8 hours, ±0.005 %/ºC. Range set by resistor up to 10 mV/V, ±5 mV/V (350 Ohms) installed.
Input Configuration
8 channels, 2 to 8 wire with guard shield. Bridge configuration is programmable for 1/4, 1/2 and full bridge. Completion resistor is ±0.1%, desired value must be specified.
Input Impedance
50 Megohms, shunted by 1,000 pF.
Input Protection
±50 Volts differential, ±50 Volts common mode.
Mechanical Connectors
Inputs are on two 50-pin, Type D. connectors. Mating connectors supplied.
Mechanical Mounting
Occupies one slot in Series 6000 enclosures.
Mechanical Operating Temperature
0 to +50 ºC
Ordering Information Ordering Information
6038 - 8-Channel Strain Gage/Transducer Amplifier-Digitizer, 8-Wire Input, 10 kS/s.
Overview Analog Bandwidth
1 kHz
Overview Analog Output
None
Overview Excitationtransducer Power
Voltage
