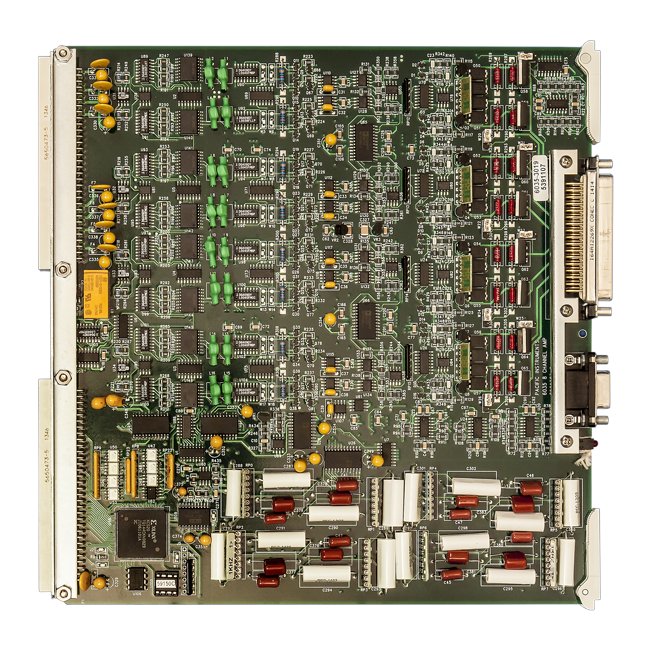

The 8-Channel Strain/Bridge Transducer Amplifier-Filter-Digitizer is a cutting-edge solution for precise signal conditioning and digitization. It features programmable gain amplifiers, balanced inputs, low-pass filtering, and 16-bit digitization for accurate data acquisition. With voltage excitation programmable for each channel and compatibility with 1/4, 1/2, and full bridge transducers, this module ensures high-performance measurement accuracy. The inclusion of automatic balance, two alarm limits, and analog output monitoring enhances real-time data analysis and control. Ideal for strain gage applications, this module meets the stringent requirements of both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth
1 kHz | -3 dB
Amplifier Common Mode
60 dB plus gain in dB up to 106 dB, DC to 60 Hz for ±10 Volts.
Amplifier Gain
Programmable from 1 to 5,000 in 1, 2, 3, 5, steps with ±0.05% accuracy.
Amplifier Gain Stability
±0.01%, ±0.004%/ºC.
Amplifier Linearity Amplifier
±0.01% for gains < 1,000, ±0.02% for gains 1,000 and higher.
Amplifier Noise 10 Hz
0.5 µV peak, RTI.
Amplifier Noise 1 Khz
1.5 µV peak, RTI
Amplifier Recovery
800 µS to ±0.1% for 10X overload to ±10 V.
Amplifier Source Current
±2 nA, ±0.01 nA/ºC
Amplifier Zero Amplifier
Automatic to ±1 µV RTI, ±0.5 mV RTO.
Amplifier Zero Stability
±5 µV RTI, ±1 mV RTO, ±1 µV/ºC RTI, ±0.2 mV/ºC RTO. Short term: ±2 µV RTI, ±0.4 mV RTO for 8 hours.
Calibration Shunt
Programmable bipolar shunt. Installed resistor provides 0.502 mV/V ±1% for 350 Ohm bridge.
Calibration Voltage Substitution
Alternate amplifier input for external voltage calibrator. Programmable attenuator steps of 1, 0.1 and 0.01 with ±0.02% accuracy. Output of the attenuator provided on rear panel connector for accuracy verification.
Calibration Zero Calibration
Amplifier input disconnected and shorted.
Digitizer Alarms
Two alarms each with upper and lower limits that are programmable from negative to positive full scale. Limits checked on each ADC sample.
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Digitizer Linearity
2 LSB (0.006%)
Digitizer Resolution
16-bits, two's complement.
Digitizer Sample
Simultaneous, within ±50 nS channel-to-channel. Droop is less than ±0.005%.
Digitizer Sample Rate
Up to 10 kS/s per channel | Up to 10 kS/s
Excitationtransducer Power Current
50 mA, limited to 70 mA. Short on one channel has less than ±0.01% affect on other channels.
Excitationtransducer Power Excitation Noise
200 µV peak-to-peak.
Excitationtransducer Power Monitor
Voltage monitor, ADC and analog output.
Excitationtransducer Power Regulation
±0.2% line and no-load to full-load measured at the input connector.
Excitationtransducer Power Stability
±0.01%, ±0.005 %/ºC
Excitationtransducer Power Voltage Excitation
Programmable for each channel from 0 to 12 Volts in 1 Volt ±0.1% steps and 3.3 mV resolution fine adjustment.
Filter Frequency
Plug-in, 4 Hz to 1 kHz, 10 Hz supplied.
Filter Noise Filter
2 mV peak RTO
Filter Other
Other filter characteristics and cut offs are available.
Filter Type
Four-pole, low-pass Butterworth with programmable bypass.
Input Balance
Automatic by program control. Balance accuracy ±0.05% of range, ±1 mV RTO. Stability ±0.02% for 8 hours, ±0.005 %/ºC. Range set by resistor up to 10 mV/V, 2 mV/V (350 Ohms) is installed.
Input Configuration
8 channels, 2 to 4 wires plus shield for bridge and voltage. Programmable completion for 1/4, 1/2 and full bridge.
Input Impedance
50 Megohms, shunted by 1,000 pF.
Input Protection
±50 Volts differential, ±30 Volts common mode.
Mechanical Connectors
Input connectors are 50-pin Type D, output connectors are 9-pin Type D. Mates are supplied.
Mechanical Mounting
Occupies one slot in Series 6000 enclosures.
Mechanical Operating Temperature
0 to +50 ºC
Ordering Information Ordering Information
6035 - 8-Ch Strain-Bridge, 4-Wire Input
Overview Analog Bandwidth
1 kHz
Overview Excitationtransducer Power
Voltage
