8 Feet (ft), 120 Volt (V) Alternating Current (AC) Voltage Low-Profile, Driverless Linkable IP67 Light Emitting Diode (LED) Standard Output (SO) Linear Luminaire Light

8 Feet (ft), 120 Volt (V) Alternating Current (AC) Voltage Low-Profile, Driverless Linkable IP67 Light Emitting Diode (LED) Standard Output (SO) Linear Luminaire Light

LOW-6ecb75

N/A

$49.99
$49.99
Sale

Initiate Order

8 Feet (ft), 120 Volt (V) Alternating Current (AC) Voltage Low-Profile, Driverless Linkable IP67 Light Emitting Diode (LED) Standard Output (SO) Linear Luminaire Light

8 Feet (ft), 120 Volt (V) Alternating Current (AC) Voltage Low-Profile, Driverless Linkable IP67 Light Emitting Diode (LED) Standard Output (SO) Linear Luminaire Light

$49.99

Quantity: 1

Claim Your Seller Account

8 Feet (ft), 120 Volt (V) Alternating Current (AC) Voltage Low-Profile, Driverless Linkable IP67 Light Emitting Diode (LED) Standard Output (SO) Linear Luminaire Light

8 Feet (ft), 120 Volt (V) Alternating Current (AC) Voltage Low-Profile, Driverless Linkable IP67 Light Emitting Diode (LED) Standard Output (SO) Linear Luminaire Light

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Light Industrial Linear. Low-Profile, Driverless, Wet-Location Rated.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Construction And Materials
Convenient push-and-click connectors let you easily and rapidly install Leader Cables and Jumper Cables. Multiple cable lengths support a variety of layouts.Integrated aluminum heat spreader. Seamless polymeric outer shell provides IP67 ingress protection and is specialized for superior chemical resistance. An additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications.All G&G luminaires and components (with the exception of our LED boards and drivers) are proudly manufactured and assembled in the USA.
Dimensions Fixture Diameter
1.0 in
Dimensions Fixture Length Single End
90.00 in
Dimensions Fixture Length Thru Wire
91.15 in
Dimensions Mounted Height
1.75 in
Dimensions Mounted Width
1.25 in
Electrical System Input Power
Stays consistent over life.
Electrical System Nominal Power Factor
0.9 pF
Electrical System Temperature Rating
Designed to operate in temperatures -40 ºC to 55 ºC.
Electrical System Total Harmonic Distortion
< 20 %
Lumen And Power Data Fixture Watt
36 W
Lumen And Power Data Lumens
4,800 lm
Alternating Current Ac Input Voltage
120 V
Ambient Temperature
-40 to 55 ºC
Ingress Protection Ip Class
IP67
Lifetime
Designed to last 100,000 Hours at 25 ºC
Mounting
Ceiling | Wall
Color Rendering Index Cri
85
Warranty
5 y

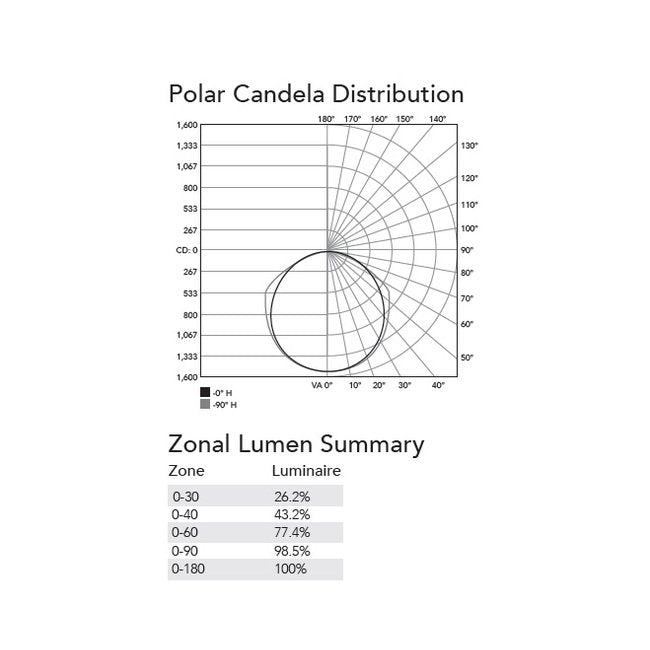

Photometry
Based on DTC Report Test #: 14404-TFixture photometry has been conducted by a NVLAP accredited testing laboratory in accordance with IESNA LM-79-08. IESNA LM-79-08 specifies the entire luminaire as the source resulting in a fixture efficiency of 100%.
Product Features

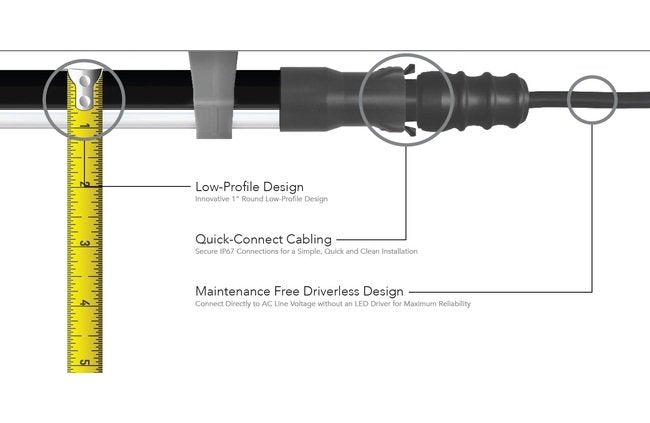

Maintenance-Free Driverless DesignConnects directly to AC line voltage without an LED driver or electrolytic capacitors, for extreme reliability and lifetime. Requires zero maintenance.Easy to Install Quick-Connect CablingConvenient push-and-click connectors and cabling make GPX Series fixtures easy to install and daisy chain.Coextruded Copolyester/Aluminum HousingOur patented process combines copolyester and aluminum together, with no seals or gaskets. The result is a single piece enclosure with excellent heatsinking characteristics for long lifetime.Superior Chemical & Ultra Violet (UV) ResistanceSeamless polymeric outer shell provides IP67 ingress protection and is specialized for superior chemical resistance. An additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications.Low-Profile DesignInnovative 1" Round Low-Profile DesignStrongSimpleCompact
Specifications Application

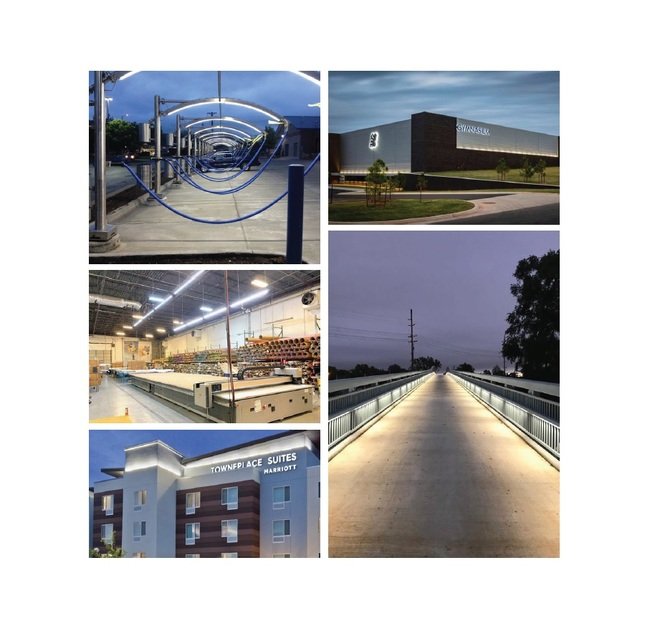

Awning | Barn Lighting | Canopy | Car Wash and Detail | Coolers | Facade | Garage Lighting | Pedestrian Walkways | Sign Lighting
Specifications Color Temperature
4000 K
Specifications Current
0.300 A
Specifications Dimming
Yes, TRIAC Dimmable
Specifications Efficacy
130 lm/W
Specifications Length
8 ft
Specifications Lens Diffusion
(Glare Control) Chemical Resistant Lens with Added Diffusion Sheet
Specifications Lumen Output
600 lm/ft
Specifications Output Type
Standard Output (SO)
Specifications Regulatory Qualification
cULus Listed | DLC Listed | NEMA 4X Rated | UL Listed for Wet Locations
Specifications Through Wired
(Standard) Connectors on Input & Output for ability to Daisy Chain fixtures
Specifications Ultraviolet Uv Protection
Outdoor-Rated with Ultraviolet (UV)-Blocking Coating
