8 Feet (ft), Low-Profile Linkable IP68/69K Light Emitting Diode (LED) Linear Luminaire Light for Hazardous Locations

Name: 8 Feet (ft), Low-Profile Linkable IP68/69K Light Emitting Diode (LED) Linear Luminaire Light for Hazardous Locations
Brand: G&G Industrial Lighting
SKU: LOW-b53a82
Price: 49.99 USD
Availability: OutOfStock

SKU:LOW-b53a82

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

C1D2 & C2D2 Hazardous Location Rated Linear. Low Profile, High-Pressure Hose Down Rated.

Product Specifications

Construction And Materials

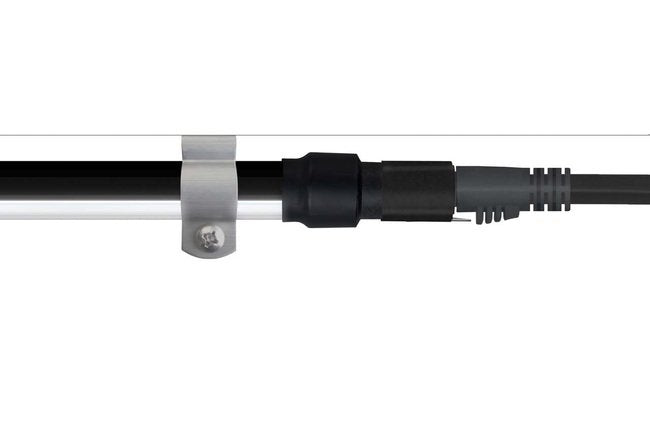

Convenient push-and-click connectors let you easily and rapidly install Leader Cables and Jumper Cables. Multiple cable lengths support a variety of layouts.Embedded aluminum heatsink provides ample cooling for a long lifetime and allows the fixture to operate in cold and hot weather environments.Seamless copolyester outer shell provides IP68/IP69K ingress protection and is specialized for superior chemical resistance.All G&G luminaires and components (with the exception of our LED boards and drivers) are proudly manufactured and assembled in the USA.

Dimensions Fixture Diameter

1.0 in

Dimensions Fixture Length Single End

90.27 in

Dimensions Fixture Length Thru Wire

91.82 in

Dimensions Mounted Height

1.75 in

Dimensions Mounted Width

1.25 in

Electrical System Input Power

Stays consistent over life.

Electrical System Nominal Power Factor

0.9 pF

Electrical System Temperature Rating

Designed to operate in temperatures -40 ºC to 55 ºC.

Electrical System Total Harmonic Distortion

< 20 %

Lumen And Power Data Fixture Watt

80 W

Lumen And Power Data Lumens

11,400 lm | 140 lm/W

Ambient Temperature

-40 to 55 ºC

Lifetime

Designed to last 100,000 Hours at 25 ºC

Mounting

Ceiling | Wall

Run Length

Up to 72' of luminaires (not including jumpers)

Warranty

5 y

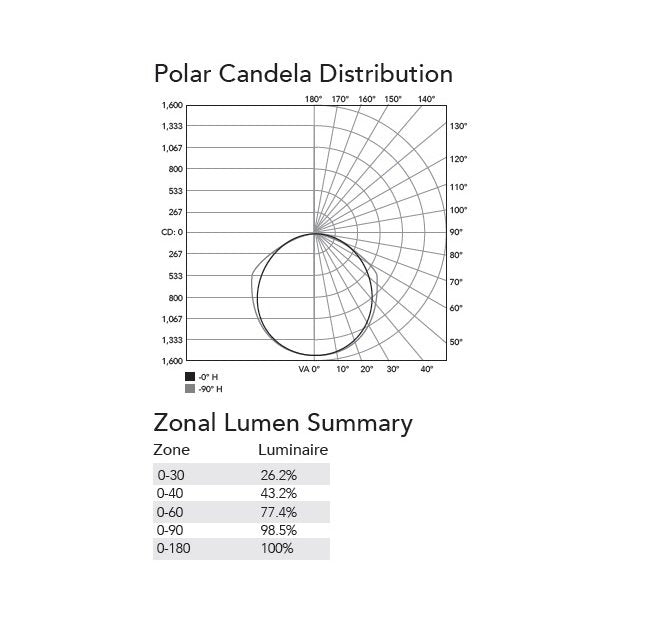

Photometry

Based on DTC Report Test #: 14404-TFixture photometry has been conducted by a NVLAP accredited testing laboratory in accordance with IESNA LM-79-08. IESNA LM-79-08 specifies the entire luminaire as the source resulting in a fixture efficiency of 100%.

Product Features

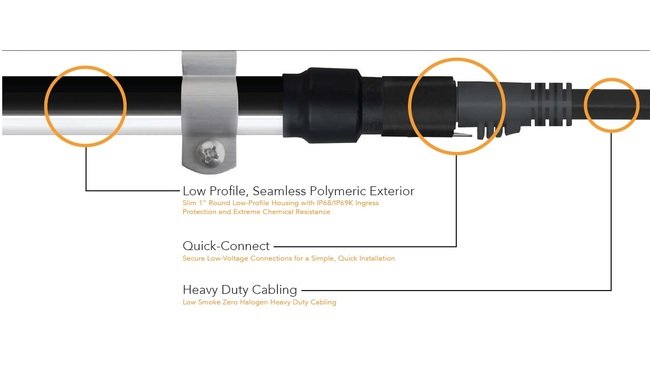

Class 1, Division 2 Rated & Class 2, Division 2Certified for Hazardous Locations Class 1, Division 2 Groups A, B,C, & D and Class 2, Division 2 Groups E, F & GHeavy Duty Quick-Connect CablingConvenient push-and-click connectors and cabling make HLX Series fixtures easy to install and daisy chain.Low-Profile Design1"round patented, innovative linear housing produces are markably slim profile allowing the HLX series to go where other fixtures simply connectionSuperior Ingress Protection & Chemical ResistanceSeamless polymeric outer shell provides IP68/IP69K ingress protection and is specialized for superior chemical resistance.

Specifications Application

Specifications Color Rendering Index Cri

Specifications Color Temperature

4000 K

Specifications Length

8 ft

Specifications Lumen Output

1,500 lm/ft

Specifications Output Type

High Output (HO)

Specifications Regulatory Qualification

Class 1, Division 2 Groups A, B, C, D, and Class 2, Division 2 Groups E, F, & G | ETL Listed | IP68/IP69K system | NEMA 4X Rated | NEMA 6P Rated

Specifications Through Wired

(Single-Ended) Connector on Input Only, No Daisy Chain, for Standalone Installation
