8 Inch ABS Wing Nut End-of-Pipe Plug - Gripper® 143-9 Series
8 Inch ABS Wing Nut End-of-Pipe Plug - Gripper® 143-9 Series
SKU:HIG-4e358f
8 Inch ABS Wing Nut End-of-Pipe Plug - Ideal for DWV and stack testing applications. Secure, corrosion-resistant design for long-term use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
8 Inch ABS Wing Nut End-of-Pipe Plug - Gripper® 143-9 Series
$29.99
Quantity: 1
Claim Your Seller Account
8 Inch ABS Wing Nut End-of-Pipe Plug - Gripper® 143-9 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 8 Inch ABS Wing Nut End-of-Pipe Plug from the Gripper® 143-9 Series is a reliable solution for DWV and stack testing applications in sewage systems. Crafted with glass-reinforced ABS plastic, this plug offers a secure end-of-pipe seal and the flexibility to seal inside the pipe as needed. Equipped with an easy-to-install zinc wing nut, natural rubber o-ring, and galvanized carriage bolt for corrosion resistance, this mechanical plug ensures long-term performance and safety. Adhering to industry standards, this plug is a trusted choice for institutional and governmental procurement requirements.
Product Specifications

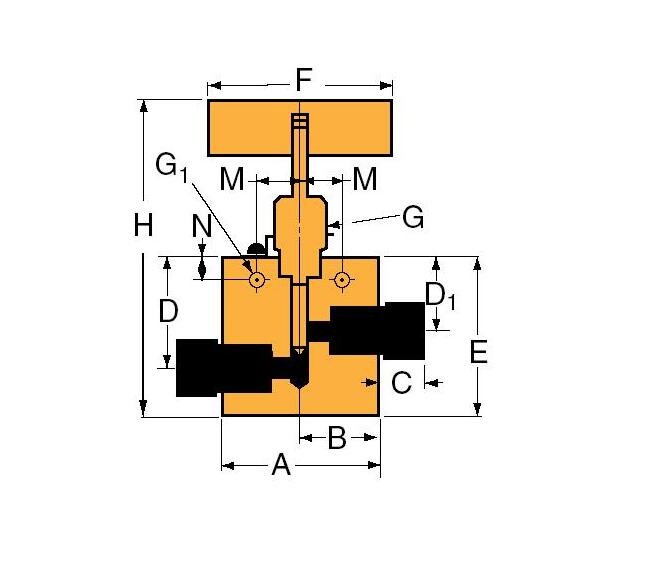

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.5 in | 38.1 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.62 in | 117.35 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.12
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
