Parker / Autoclave Engineers →

8 Inch ABS Wing Nut Pipe Plug

8 Inch ABS Wing Nut Pipe Plug

SKU:HIG-d6376f

Versatile 8" ABS Wing Nut Pipe Plug for DWV & stack testing. End-of-pipe & inside-of-pipe design. Reinforced ABS plastic. Easy installation & corrosion-resistant.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

8 Inch ABS Wing Nut Pipe Plug

8 Inch ABS Wing Nut Pipe Plug

$24.99

Quantity: 1

Claim Your Seller Account

8 Inch ABS Wing Nut Pipe Plug

8 Inch ABS Wing Nut Pipe Plug

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 143-9 Series 8 Inch Nominal Size Inside of Pipe Plug is a versatile solution designed for DWV and stack testing applications. Made from reinforced Acrylonitrile Butadiene Styrene (ABS) material, this plug features an end-of-pipe design to prevent falling in and an inside-of-pipe design for precise placement. With a range of use from 7.7 to 8.03 inches, it can withstand up to 17 psi back pressure. The plug is equipped with an extra-large zinc wing nut for easy installation, a natural rubber o-ring for a secure seal, and a galvanized carriage bolt to prevent corrosion. Compliant with industry standards for sewer testing and long-term applications, this mechanical plug ensures reliable performance in various plumbing scenarios.

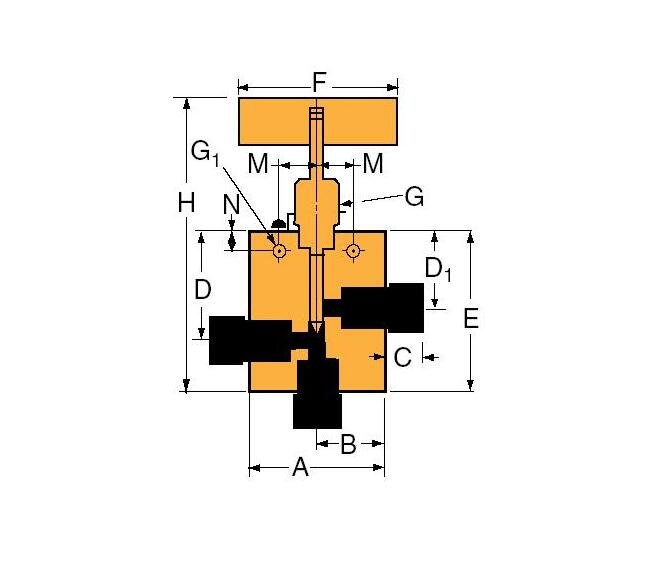

Product Specifications

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.5 in | 38.1 mm
Specifications E Height
2.50 in | 63.50 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.12 in | 130.05 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.23
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
