8 Inch Bore Air Intensifiers

8 Inch Bore Air Intensifiers

SKU:INT-ee0a0d

Boost pressure efficiently with 8 Inch Bore Air Intensifiers for optimal performance in industrial settings.

Regular price $899.99
Regular price Sale price $899.99
Sale

Initiate Order

8 Inch Bore Air Intensifiers

8 Inch Bore Air Intensifiers

$899.99

Quantity: 1

Claim Your Seller Account

8 Inch Bore Air Intensifiers

8 Inch Bore Air Intensifiers

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

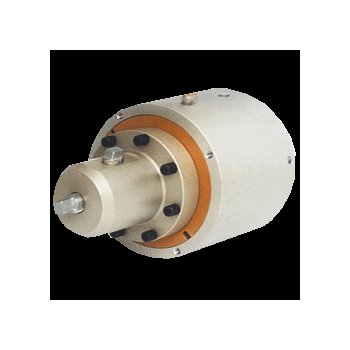

The 8 Inch Bore Air Intensifiers from Compact Automation Products provide unparalleled pressure intensification, with a maximum output pressure reaching up to 5000 psi. Engineered for efficiency, these intensifiers feature a rugged, space-efficient aluminum design that ensures long life and low friction. With three mounting choices and optional magnetic piston, these intensifiers offer versatile solutions for various applications.

Product Specifications

Features Features
Rugged space efficient, low weightAluminum designLong life/Low frictionThree mounting choicesOptional Magnetic piston (Option "ACI")
Specifications Construction Material
Aluminum | Other
Specifications High Pressure Hp Outlet Bore Size High
2 in
Specifications High Pressure Hp Outlet Bore Size Low
1.125 in
Specifications Maximum Outlet Flow High
9 in³/min
Specifications Maximum Outlet Flow Low
1 in³/min
Specifications Maximum Output Pressure High
5000 psi
Specifications Maximum Output Pressure Low
3200 psi
Specifications Oil Based Hydraulic Fluid
Yes
Specifications Piston Travel High
3 in
Specifications Piston Travel Low
1 in
Specifications Pneumatic
Yes
Specifications Pressure Inlet Bore Size Low
8 in
Specifications Pressure Intensification Factor High
50
Specifications Pressure Intensification Factor Low
16
Specifications Series
CI Series
