8-Inch Bore NFPA Pneumatic Side Lug Mount
8-Inch Bore NFPA Pneumatic Side Lug Mount
SKU:AIR-3a559c
Premium 8-Inch Bore NFPA Pneumatic Cylinder with Side Lug Mount for efficient linear force. Lightweight aluminum, easy maintenance, versatile mounting options.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
8-Inch Bore NFPA Pneumatic Side Lug Mount
$329.99
Quantity: 1
Claim Your Seller Account
8-Inch Bore NFPA Pneumatic Side Lug Mount
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the unparalleled performance of our 4MA Series 8-Inch Bore NFPA Pneumatic Cylinder Side Lug Mount. Crafted from lightweight aluminum, this cylinder guarantees efficient linear force with easy maintenance features like a removable bronze alloy gland/bearing. With industry-leading construction and flexible design, this cylinder offers 20 mounting styles, switch grooves, and various stroke length options. Whether for industrial or governmental applications, this RoHS compliant cylinder ensures reliability and performance.

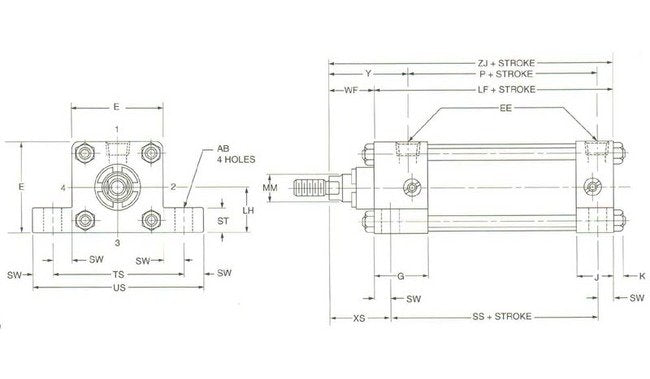

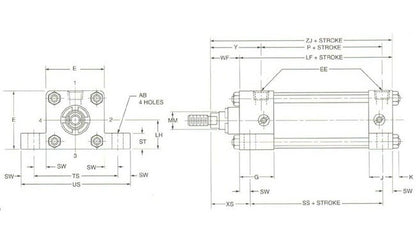

Product Specifications
Rod Dimensions A
1 5/8 in | 2 in
Rod Dimensions B
1.999 in | 2.374 in
Rod Dimensions C
13/16 in | 7/8 in
Rod Dimensions D
1 1/2 in | 1 1/8 in
Rod Dimensions La
3 1/4 in | 3 7/8 in
Rod Dimensions Na
1 11/16 in | 1 5/16 in
Rod Dimensions Rod Dimension Mm
1 3/4 in | 1 3/8 in
Rod Dimensions Thread Style 2 3 Kk
1 1/4-12 | 1-14
Rod Dimensions Thread Style 4 Cc
1 1/2 -12 | 1 1/4 -12
Rod Dimensions Tolerance B
+0.000 in | -0.002 in
Rod Dimensions Vf
1 1/16 in | 3/4 in
Rod Dimensions W
1 1/8 in | 7/8 in
Rod Dimensions Wf
1 5/8 in | 1 7/8 in
Rod Dimensions Y
2 3/4 in | 3 in
Specifications Ab
13/16 in
Specifications Add Stroke Lf
5 1/8 in
Specifications Add Stroke Nd
1 1/8 in
Specifications Add Stroke P
3 1/4 in
Specifications Add Stroke Sn
3 1/4 in
Specifications Add Stroke Ss
3 3/4 in
Specifications Add Stroke Xs
2 5/16 in | 2 9/16 in
Specifications Add Stroke Xt
2 13/16 in | 3 1/16 in
Specifications Add Stroke Zj
6 3/4 in | 7 in
Specifications Bore Size
8 in
Specifications E
8 1/2 in
Specifications Ee Nptf
3/4 in
Specifications G
1.81 in
Specifications J
1.44 in
Specifications K
9/16 in
Specifications Lh
4.243 in
Specifications Manufacturer
Schrader Bellows®
Specifications Nfpa
MS2
Specifications Nt
3/4-10 in
Specifications St
1 in
Specifications Sw
11/16 in
Specifications Th
4.243 in
Specifications Tn
4 1/2 in
Specifications Tolerance Lh
±0.003 in
Specifications Tolerance Th
±0.003 in
Specifications Ts
9 7/8 in
