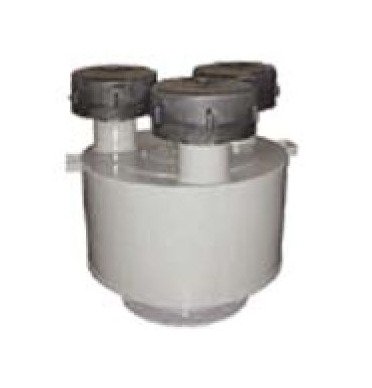

8 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter - Paper Element
8 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter - Paper Element
SKU:SPI-d89d86
Enhance filtration efficiency with the 8 Inch Spinmeister Extreme Duty Air Filter - ideal for high dust environments.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
8 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter - Paper Element
$799.99
Quantity: 1
Claim Your Seller Account
8 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter - Paper Element
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 8 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter with a Paper Element is specially designed for high dust environments, significantly extending filter element life. With 85% efficiency at 15 microns, the centrifugal flow and pleated element ensure superior filtration. Constructed with durable materials, this filter meets the rigorous demands of applications in Blowers, Cement Industry, Engines, Fans, Foundries, and more. Its heavy-gauge carbon steel housing and optimal design offer low pressure drop and efficient performance, making it a reliable choice for industrial settings.
Product Specifications
Dimensions Dimension A
31-1/2 in
Dimensions Dimension B
6 in
Dimensions Dimension C
22-1/2 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
103 lb
Specifications Connection Style
Flange (FLG)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
8 in
Specifications Rated Flow
1800 scfm
Specifications Type
D
