8" Strap Hinge - Steel Zinc Plated, Narrow Bracket Over The Seal
8" Strap Hinge - Steel Zinc Plated, Narrow Bracket Over The Seal
SKU:HIN-0413ed
Durable 8" Strap Hinge in Steel Zinc Plated finish for heavy-duty applications. Ensure robust performance and easy installation.
Regular price
$17.95
Regular price
Sale price
$17.95
Unit price
per
Initiate Order
8" Strap Hinge - Steel Zinc Plated, Narrow Bracket Over The Seal
$17.95
Quantity: 1
Claim Your Seller Account
8" Strap Hinge - Steel Zinc Plated, Narrow Bracket Over The Seal
$17.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

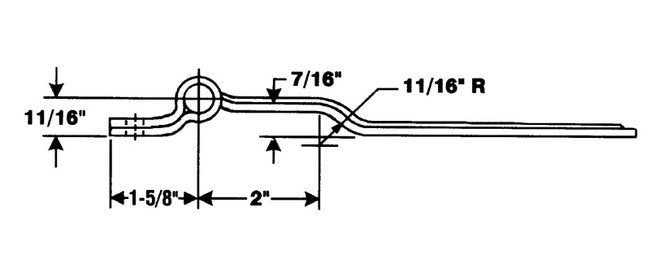

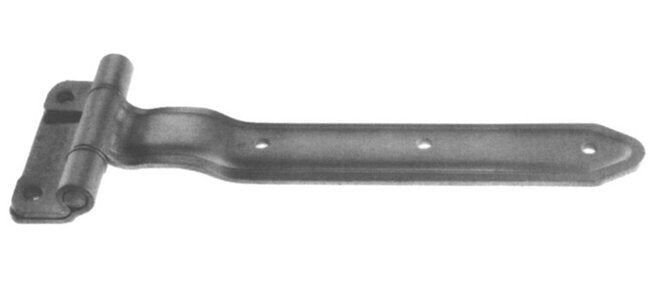

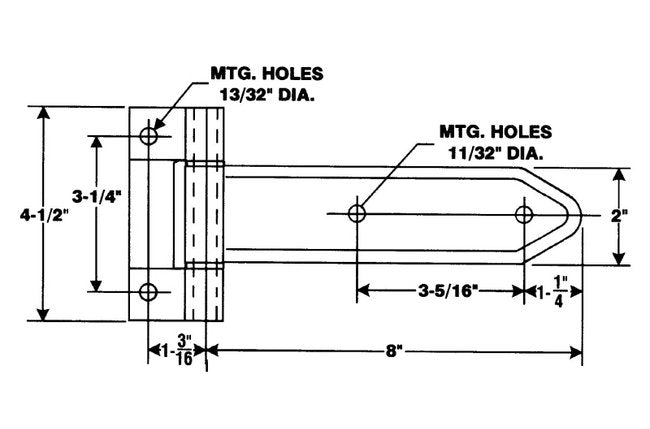

The 8" Strap Hinge in Steel Zinc Plated finish is a durable hardware solution suitable for heavy-duty applications. With a Strap of 8 Ga. x 2" x 8" and a Bracket of 8 Ga. x 4 1/2" x 1 5/8", this hinge ensures robust performance. The 1/2" Dia. steel Pin adds strength, while the Mounting Holes spaced at 3 5/16" center to center allow for secure installation. Meet institutional standards effortlessly with this reliable hinge ideal for doors, gates, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Bracket
8 Ga. x 4 1/2" x 1 5/8" from center of pin.
Specifications Finish
Steel Zinc plated.
Specifications List Price
17.95 USD
Specifications Mounting Holes On Strap C To C
3 5/16"
Specifications Pin
1/2" Dia. steel.
Specifications Strap
8 Ga. x 2" x 8"
Specifications Weight
2 lb
