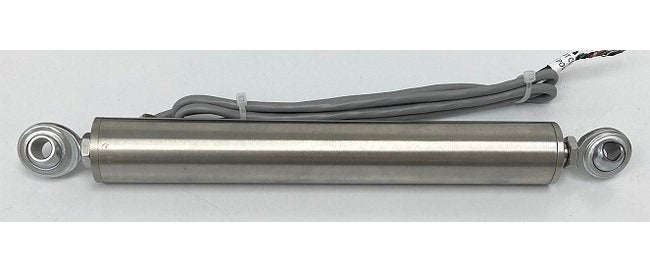

8" Stroke Linear Potentiometer Replacement Sensor - 27mm OD, 0-10V DC

Name: 8" Stroke Linear Potentiometer Replacement Sensor - 27mm OD, 0-10V DC
Brand: Alliance Sensors Group
SKU: LIN-db1486
Price: 89.99 USD
Availability: OutOfStock

SKU:LIN-db1486

Upgrade equipment with 8" Stroke Linear Potentiometer Sensor - 27mm OD, 0-10V DC. High precision, durability, and CE compliance.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your equipment with the 8-inch stroke linear potentiometer replacement sensor. With an outside diameter of 27mm and a range of 0 to 10V DC output, this sensor from Alliance Sensors Group offers precise monitoring capabilities. Constructed with a stainless steel body and CE approval, it ensures durability and compliance with European standards. The sensor's high linearity (<0.25% of full scale) and fine resolution (0.025% of full scale) make it ideal for industrial applications requiring accuracy and reliability. Experience seamless integration and dependable performance with this advanced sensor.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Cable Length

1 m

Technical Specs Cable Type

Radial

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Stainless Steel Body

Technical Specs Output Direct Current Dc Voltage

0 to 10 V

Technical Specs Outside Diameter

27 mm

Technical Specs Range

8 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Stroke

8 in

Technical Specs Temperature Range

-40 to 105 ºC

Technical Specs Type

Rod Ends

Technical Specs Update Rate

300 Hz

8" Stroke Linear Potentiometer Replacement Sensor - 27mm OD, 0-10V DC
