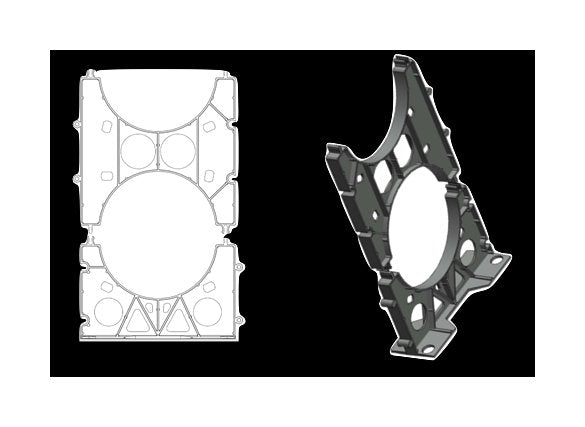

8 x 2 Underground Duct Spacer Base

8 x 2 Underground Duct Spacer Base

CON-8a106b

Secure duct banks effortlessly with the 8 x 2 Underground Duct Spacer Base. Easy assembly, reliable interlocking, and versatile usage for EB and DB installations.

$39.99
$39.99
Sale

Initiate Order

8 x 2 Underground Duct Spacer Base

8 x 2 Underground Duct Spacer Base

$39.99

Quantity: 1

Claim Your Seller Account

8 x 2 Underground Duct Spacer Base

8 x 2 Underground Duct Spacer Base

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 8 x 2 Underground Duct Spacer Base is an essential component for securing duct banks during backfilling. Designed with modular elements that interlock both vertically and horizontally, this single base spacer ensures the alignment and stability of duct sections without the need for banding. Fast and secure field assembly is guaranteed with only two components required: the base spacer and intermediate spacer. These spacers firmly lock together, preventing any separation, and are versatile for use in EB and DB installations. To meet the rigid standards of institutional procurement, this spacer is built with a completely locked-in construction, ensuring uncomplicated alignment of duct bank sections and precise duct separation with the Vertical-lok spacer.

Product Specifications

Features
Alignment of the duct bank sections is uncomplicated with this completely locked-in construction. | Banding is not necessary. | Field Assembly is fast and secure. | Only two components, base and intermediate, are needed. | Spacers lock firmly together, preventing separation. | They snap together, vertically, slide together horizontally. | To prevent the top tier from floating during encased burial, we recommend using tie wire, cap straps, or a base spacer on the top run for a flat surface during concrete encasement depending on your job specifications.Used in both EB and DB installations | With the Vertical-lok spacer, ducts are accurately separated.
Specifications Pipe Diameter
8 in
Specifications Pipe Separation
2 in
Specifications Short Description
GSB8X200199 SPACER BASE 8 X 2
Specifications Standard Pack
50
Specifications Type
Single Base Spacer
Specifications Weight
29 lb
