80 Gallon Horizontal Air Receiver Tank, ASME Certified
80 Gallon Horizontal Air Receiver Tank, ASME Certified
SKU:HOR-7aabd9
Enhance air compression systems with our ASME-certified 80 gal horizontal air receiver tank, built to withstand pressures up to 600 psi.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
80 Gallon Horizontal Air Receiver Tank, ASME Certified
$549.99
Quantity: 1
Claim Your Seller Account
80 Gallon Horizontal Air Receiver Tank, ASME Certified
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

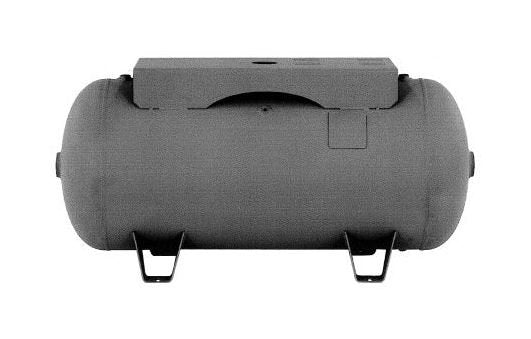

Upgrade your air compression system with our 80-gallon horizontal air receiver tank designed to ASME standards. This tank boasts a design pressure of 200 psi and a standard design temperature of 450°F, ensuring safe and efficient air storage. With precision-engineered dimensions and high-quality construction, it is perfect for industrial applications requiring reliable air pressure support. The grey oxide primer finish adds durability, while the NPT threaded openings provide flexibility for connection. Trust in this tank for high-pressure requirements up to 600 psi, meeting the most rigorous industry standards.
Product Specifications

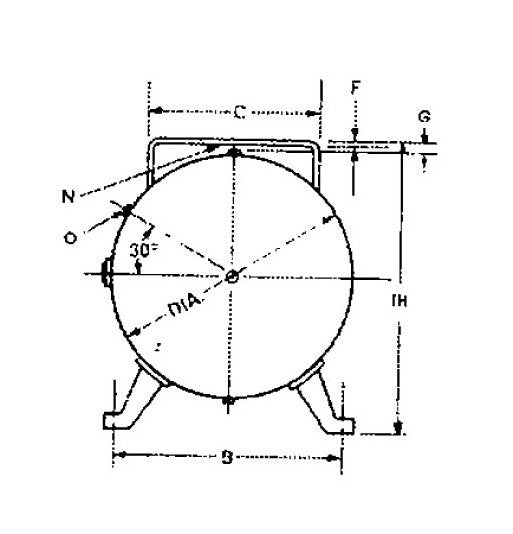

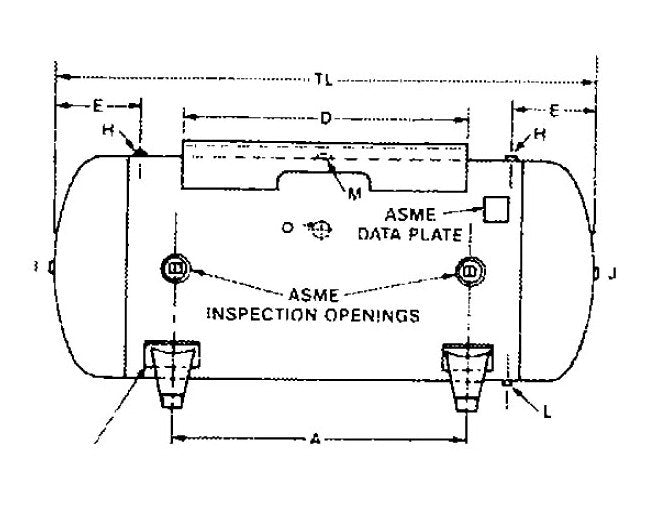

Dimensions Dimension A
9 in
Dimensions Dimension B
22.5 in
Dimensions Dimension C
15.5 in
Dimensions Dimension D
32 in
Dimensions Dimension E
16.5 in
Dimensions Dimension F
2.31 in
Dimensions Dimension G
2 in
Note 0
Pads are not used on 16" diameter tanks.
Openings Opening H
1 in
Openings Opening I
1/2 in
Openings Opening J
1-1/4 in
Openings Opening K
2 in
Openings Opening L
3/4 in
Openings Opening M
1-1/2 in
Openings Opening N
3 in
Openings Opening O
1/4 in
Specifications Design Pressure
200 psi
Specifications Diameter
20 in
Specifications Height
22.31 in
Specifications Industry Standards
ASME
Specifications Length
63 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
80 gal
