80-Gallon Horizontal Air Receiver Tank with 200 psi MWP and Legs

Name: 80-Gallon Horizontal Air Receiver Tank with 200 psi MWP and Legs
Brand: Compressed Air Systems, Inc.
SKU: REC-cc2be9
Price: 599.99 USD
Availability: OutOfStock

SKU:REC-cc2be9

Durable 80-Gal Air Receiver Tank w/ 200 psi MWP, ideal for industrial use

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

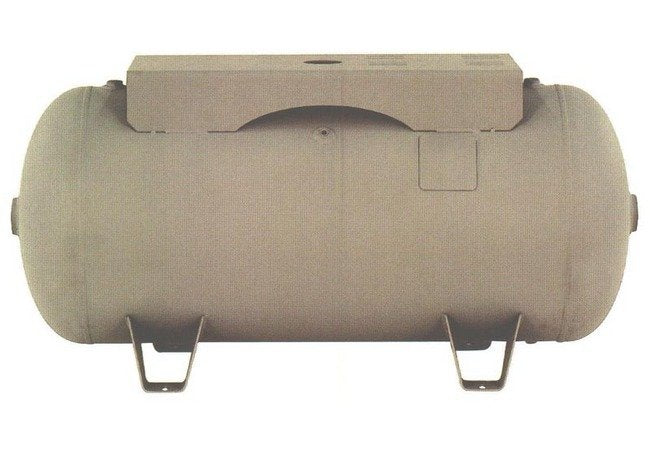

The 80-Gallon Horizontal Air Receiver Tank is a reliable storage solution for compressed air in industrial facilities, built with a maximum working pressure of 200 psi for enhanced performance. With a nominal capacity of 80 gallons (10.70 ft³) and sturdy legs for stability, this tank is designed to meet the demands of heavy-duty applications. Its dimensions ensure space efficiency, while the quality construction and wing feet design offer durability. Compliant with Federal/DoD procurement standards, this tank is a versatile choice for meeting institutional requirements.

Product Specifications

Financing Approve Payments

Finance with Approve Payments

Specifications Cross Reference

A10031

Specifications Dimension A

9.00 inches

Specifications Dimension B

22.50 inches

Specifications Dimension C

15.50 inches

Specifications Dimension D

32.00 inches

Specifications Dimension E

16.50 inches

Specifications Dimension F

2.31 inches

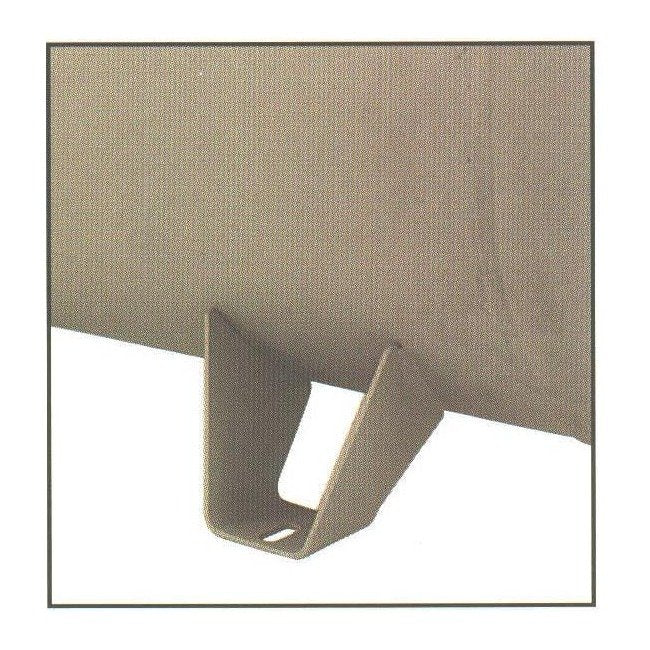

Specifications Feet

Wing Feet

Specifications Ht

22.31 inches

Specifications Mawp

200 psi

Specifications Nominal Capacity

80 gal | 10.70 ftÂ³

Specifications Npt Opening G

2 inches

Specifications Npt Opening H

1 inches

Specifications Npt Opening J

1/2 inches

Specifications Od

20.00 inches

Specifications Size

9/16 x 1 1/2 inches

Specifications Tl

63.00 inches

Specifications Tw

214

80-Gallon Horizontal Air Receiver Tank with 200 psi MWP and Legs
