80-Gallon Horizontal Air Receiver Tank with 300psi MWP and Legs

Name: 80-Gallon Horizontal Air Receiver Tank with 300psi MWP and Legs
Brand: Compressed Air Systems, Inc.
SKU: REC-d75a73
Price: 699.99 USD
Availability: OutOfStock

SKU:REC-d75a73

Durable 80-Gallon Horizontal Air Receiver Tank with 300psi MWP, ideal for efficient air storage and distribution.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

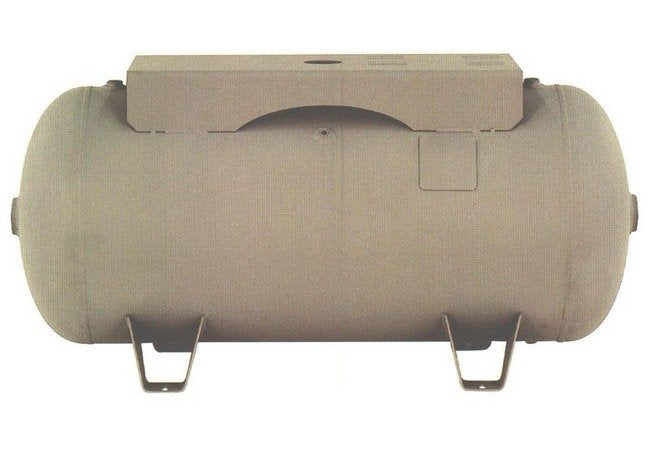

The 80-Gallon Horizontal Air Receiver Tank is a durable and reliable solution for storing compressed air at a maximum working pressure of 300 psi. With a nominal capacity of 80 gallons (10.70 ft³), this tank features dimensions of 32.00" x 24.06" x 63.00" and is constructed with a top plate of 0.25 inches thickness. The tank is equipped with 2-inch, 1-inch, and 1/2-inch N.P.T. openings for easy installation, as well as wing feet for stability. Ideal for industrial and commercial applications, this air receiver tank ensures efficient air storage and distribution, meeting the highest quality standards.

Product Specifications

Financing Approve Payments

Finance with Approve Payments

Specifications Dimension A

9.00 inches

Specifications Dimension B

22.50 inches

Specifications Dimension C

15.50 inches

Specifications Dimension D

32.00 inches

Specifications Dimension E

16.50 inches

Specifications Dimension F

2.31 inches

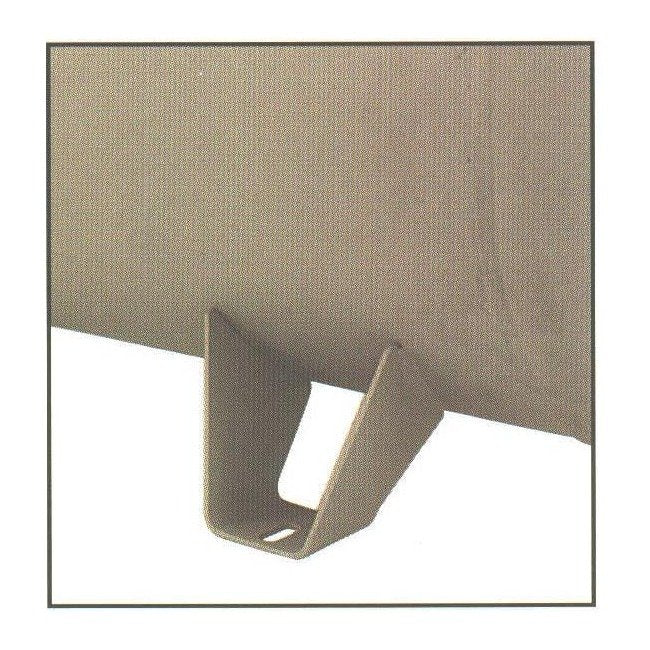

Specifications Feet

Wing Feet

Specifications Ht

24.06 inches

Specifications Mawp

300 psi

Specifications Nominal Capacity

80 gal | 10.70 ftÂ³

Specifications Npt Opening G

2 inches

Specifications Npt Opening H

1 inches

Specifications Npt Opening J

1/2 inches

Specifications Od

20.00 inches

Specifications Size

9/16 x 1 1/2 inches

Specifications Tl

63.00 inches

Specifications Top Plate

0.25 x 15 x 40

Specifications Tw

350

80-Gallon Horizontal Air Receiver Tank with 300psi MWP and Legs
