800 CBM Jib Crane
800 CBM Jib Crane
SKU:REL-6f84fb
Heavy-duty 8000 lbs. Jib Crane with versatile mounting options and customizable height variations. Certified drawing available for precise installation dimensions.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
800 CBM Jib Crane
$7,999.99
Quantity: 1
Claim Your Seller Account
800 CBM Jib Crane
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

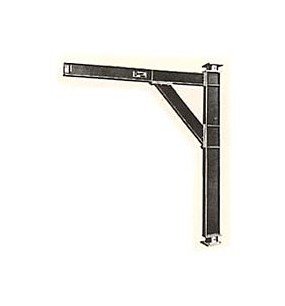

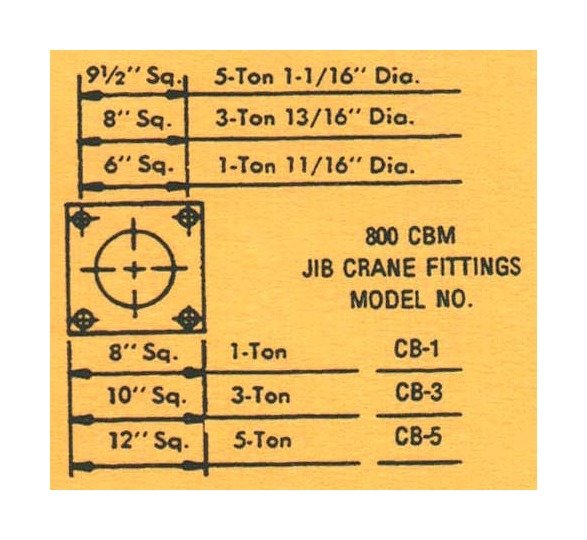

The 800 CBM Jib Crane is a heavy-duty solution with rigid underbracing for maximum hook height. Featuring self-aligning anti-friction bearings for seamless 360° rotation, this crane boasts a structural mast supported design for smaller floor loads. With versatile mounting options and ease of installation, it offers customizable height variations to suit any environment. For precise installation dimensions, certified drawing No. SD-800-7T is available upon request.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template
Specifications Boom Size B
15 inches
Specifications Capacity
8000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Knee Brace D
4'-0"
Specifications Max Height C
14'-6"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
12'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
2235 lbs.
