8000 Series High Pressure Solenoid Valve
8000 Series High Pressure Solenoid Valve
SKU:ATK-3f464d
High-pressure stainless steel solenoid valve with Teflon® seals, ideal for diverse fluid applications. Operating pressure: 5-1500 psig.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
8000 Series High Pressure Solenoid Valve
$289.99
Quantity: 1
Claim Your Seller Account
8000 Series High Pressure Solenoid Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

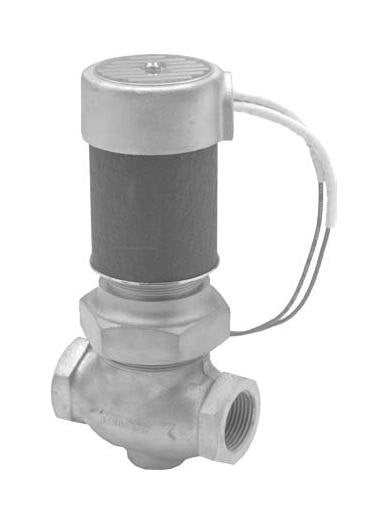

The 8000 Series Solenoid Valve is a robust stainless steel valve suitable for high-pressure applications, with a pressure range of 5 to 1500 psig. It features Teflon® seat & seal material, making it compatible with a wide range of fluids including liquid up to 40 SUS. This valve is designed for reliability, with a normally closed position, operating temperatures from -423 to 500 °F, and a Cv of 19.5. The coil insulation is Class H, and it comes with a standard coil housing for added protection and durability.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 1/4 in
Specifications Connection Type
Female NPT
Specifications Cv
19.5

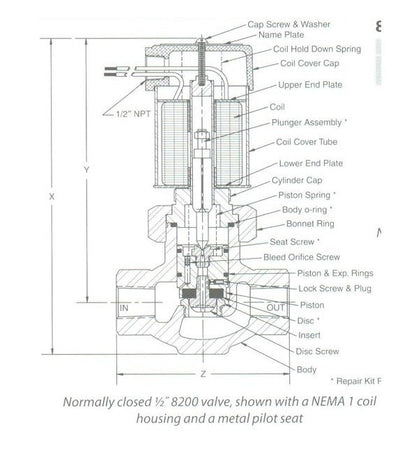

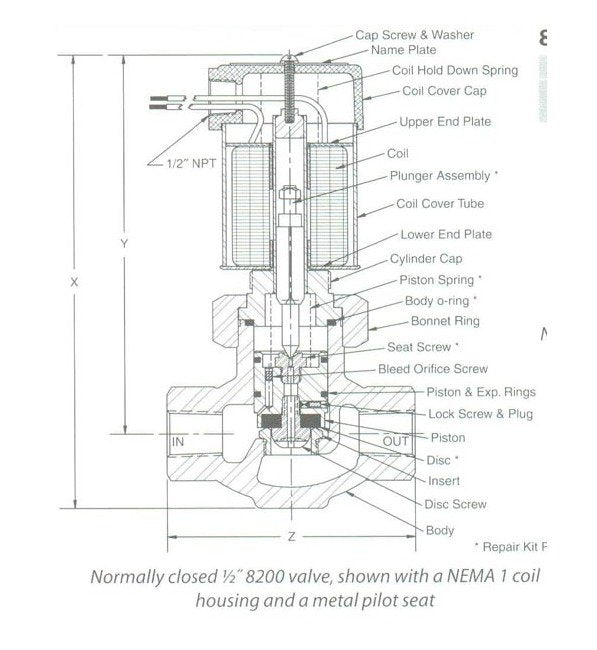

Specifications Dim X
9.5 in
Specifications Dim Y
7 5/8 in
Specifications Dim Z
5 7/8 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
1 1/2 in

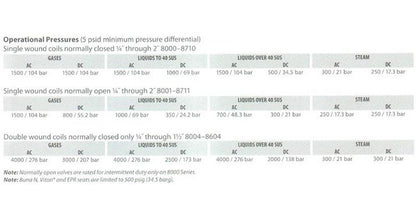

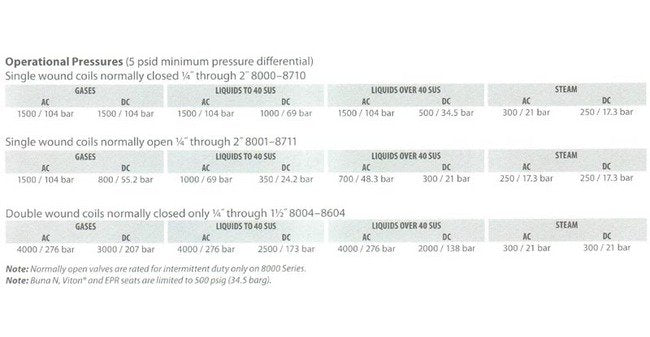

Specifications Operating Pressure
5 to 1500 psig | 0.4 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Teflon®
Specifications Series
8000
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
