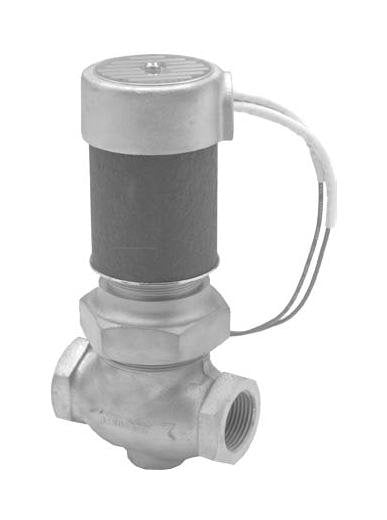

8000 Series Stainless Steel Solenoid Valve - Pilot Piston High Pressure 1-1/4'' NPT Gas Valve
8000 Series Stainless Steel Solenoid Valve - Pilot Piston High Pressure 1-1/4'' NPT Gas Valve
SKU:ATK-0c6122
8000 Series Stainless Steel Solenoid Valve for high-pressure gas applications. Pilot operated, normally open, with versatile material options.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
8000 Series Stainless Steel Solenoid Valve - Pilot Piston High Pressure 1-1/4'' NPT Gas Valve
$349.99
Quantity: 1
Claim Your Seller Account
8000 Series Stainless Steel Solenoid Valve - Pilot Piston High Pressure 1-1/4'' NPT Gas Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 8000 Series Solenoid Valve is designed for high-pressure applications, with stainless steel construction suitable for a wide range of fluid types. Featuring a pressure range of 5 to 500 psig, this valve is pilot operated, full ported, and available in both normally open and normally closed configurations. With a temperature range of -65 to 275 °F, it can handle fluids with viscosity up to 200 SUS. The valve is further enhanced with a variety of seat and seal materials, removable stainless steel body inserts, and optional coil types for different pressure requirements.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 1/4 in
Specifications Connection Type
Female NPT
Specifications Cv
19.5

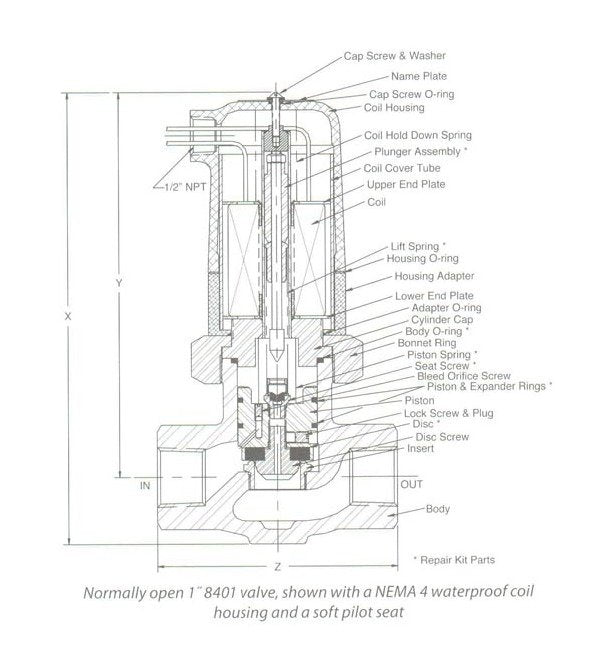

Specifications Dim X
10 11/16 in
Specifications Dim Y
8 13/16 in
Specifications Dim Z
5 7/8 in
Specifications Fluid Media Type
Gas
Specifications Main Seat Orifice
1 1/2 in

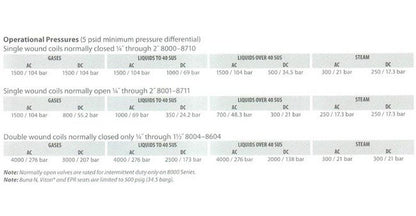

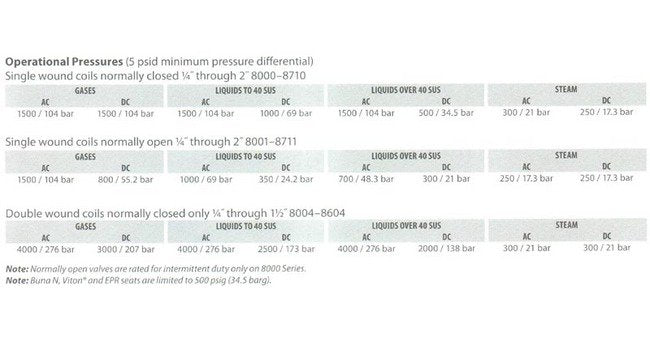

Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Buna N
Specifications Series
8000
Specifications Temperature Range
-65 to 275 ºF | -54 to 135 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
