82 Inch (in) Casing Side Advanced Acoustical Cone for Greenheck Vane Axial Fan

Name: 82 Inch (in) Casing Side Advanced Acoustical Cone for Greenheck Vane Axial Fan
Brand: ArtUSA Noise Control Products
SKU: SIL-cfdb40
Price: 49.99 USD
Availability: OutOfStock

SKU:SIL-cfdb40

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Dynamic Insertion Loss Dynamic Insertion Loss 1000 Hertz Hz 1500

25 dB

Dynamic Insertion Loss Dynamic Insertion Loss 125 Hertz Hz 1500

10 dB

Dynamic Insertion Loss Dynamic Insertion Loss 2000 Hertz Hz 1500

25 dB

Dynamic Insertion Loss Dynamic Insertion Loss 250 Hertz Hz 1500

16 dB

Dynamic Insertion Loss Dynamic Insertion Loss 4000 Hertz Hz 1500

14 dB

Dynamic Insertion Loss Dynamic Insertion Loss 500 Hertz Hz 1500

23 dB

Dynamic Insertion Loss Dynamic Insertion Loss 63 Hertz Hz 1500 F

3 dB

Dynamic Insertion Loss Dynamic Insertion Loss 8000 Hertz Hz 1500

11 dB

Note

For each 1500 FPM over 1500, add 1 dB per band.

Specifications Casing Side

82 in

Specifications Inlet Diameter

75 in

Specifications Length

73 in

Specifications Maximum Air Flow

39000 ft³/min

Specifications Outlet Diameter

36.375 in

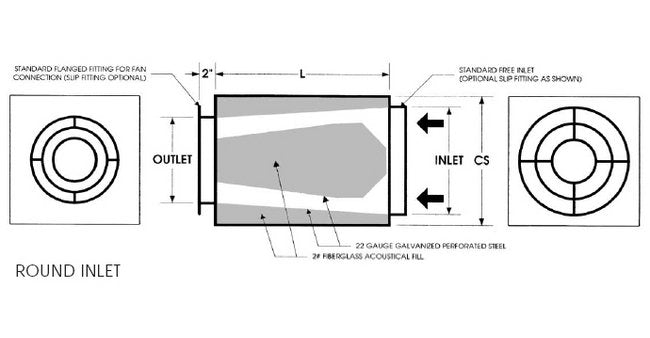

Specifications Shape Of Inletoutlet

Round Inlet

Specifications Silencer Size Class

Specifications Type

Acoustical

Specifications Use For

Greenheck Vane Axial Fans

82 Inch (in) Casing Side Advanced Acoustical Cone for Greenheck Vane Axial Fan
