82-M Series Blind Hole Circuit Board Support
82-M Series Blind Hole Circuit Board Support
SKU:01C-6b7419
Securely mount circuit boards with our durable 82-M Series supports. RoHS compliant and ASTM D 4066, PA111 certified.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
82-M Series Blind Hole Circuit Board Support
$24.99
Quantity: 1
Claim Your Seller Account
82-M Series Blind Hole Circuit Board Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

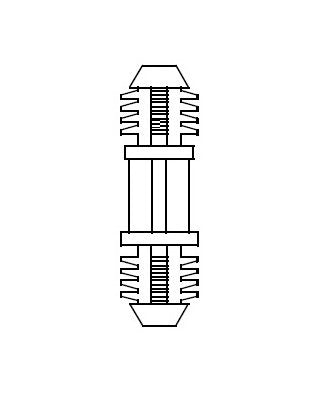

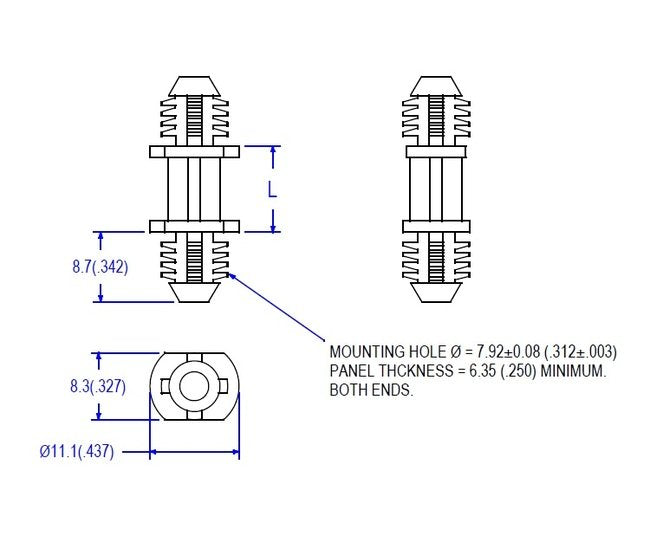

The 82-M Series Blind Hole Circuit Board Support is designed for mounting in circuit board applications with a .312-inch hole on a minimum .250-inch thick chassis. This blind hole PCB support features a Blind Hole/X-Mass Tree Style, providing secure support for your boards. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is reliable and RoHS compliant, ensuring safety and durability. With a temperature range of -40 to 185F (-40 to 85C) and ASTM D 4066, PA111 compliance, this support meets stringent industry standards.
Product Specifications
Specifications Dim L 015
.314 (8) inches (mm)
