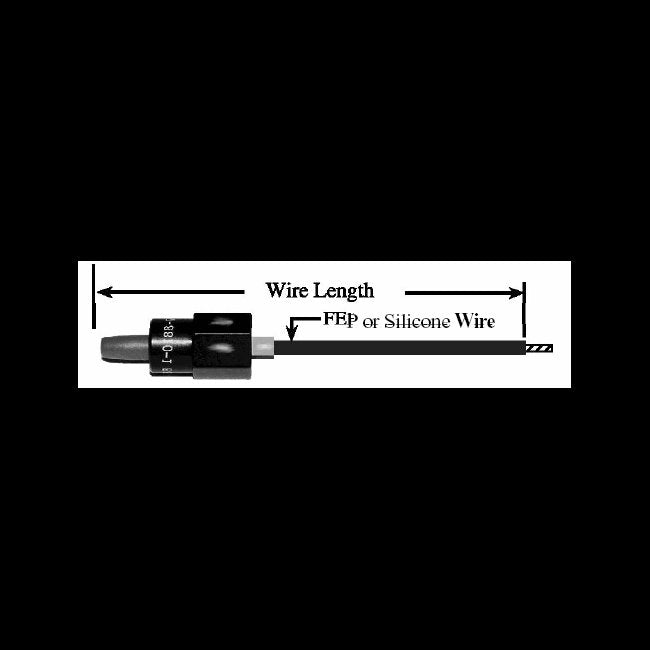

830 Series High Voltage Plug Bag Assembly
830 Series High Voltage Plug Bag Assembly
SKU:HIG-ab6d39
Reliable 830 Series Plug Bag Assembly for 10-25 kVDC apps, altitude rated up to 70,000 ft., featuring 4-6 Amp current, -55 to 125 ºC temp range & 15 kVDC test voltage.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
830 Series High Voltage Plug Bag Assembly
$59.99
Quantity: 1
Claim Your Seller Account
830 Series High Voltage Plug Bag Assembly
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 830 Series Plug Bag Assembly offers reliable high-voltage connectivity suitable for 10-25 kVDC applications. Designed for altitude conditions up to 70,000 ft., it features a current rating of 4-6 Amp, operating temperature range of -55 to 125 ºC, and a test voltage of 15 kVDC. Compatible with various receptacles, including LGH 1/2I series, this threaded assembly ensures a secure coupling. With a plastic coupling nut material and standard part designation, this plug assembly is built for durability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
Mates all series 730 & 830 receptacles and all LGH 1/2I series receptacles. Also mates Reynolds C730 receipt axles RC1505,2RC1505 and 3RC1505: this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
830
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at 70,000 ft. (Simulated) at Ambient Temperature
Specifications Voltage Rating
10 kVDC
