85 Series Circuit Board Supports .152 Board Hole x .152 Chassis Side
85 Series Circuit Board Supports .152 Board Hole x .152 Chassis Side
SKU:01C-0e20c3
Securely support circuit boards with the 85 Series .152 Board Hole x .152 Chassis Side for durability and reliability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
85 Series Circuit Board Supports .152 Board Hole x .152 Chassis Side
$24.99
Quantity: 1
Claim Your Seller Account
85 Series Circuit Board Supports .152 Board Hole x .152 Chassis Side
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

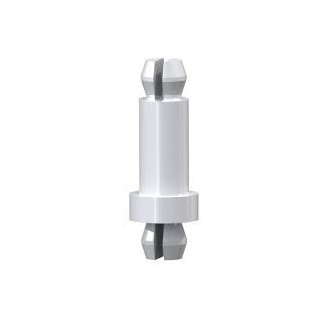

The 85 Series Circuit Board Support features a .152 Snap Fit PCB for secure attachment and a .152 Lock Fit Chassis End for stability. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is RoHS compliant and can withstand temperatures ranging from -40 to 185F (-40 to 85C). Measuring .250 inches (6.4mm) in length, this support is designed for reliability and durability in electronic applications.
Product Specifications

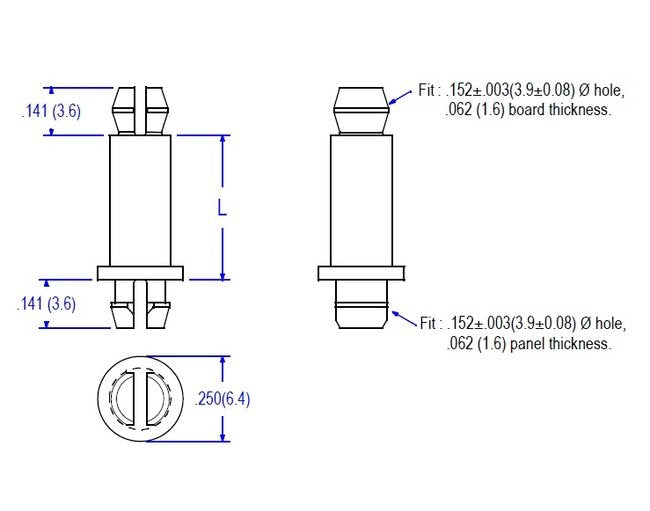

Specifications Dim L
.250 (6.4) inches (mm)
