85 Series Nylon PCB Supports: .152 Board Hole x .152 Chassis Side
85 Series Nylon PCB Supports: .152 Board Hole x .152 Chassis Side
SKU:01C-ad703e
Secure PCB mounting with 85 Series Nylon PCB Supports: .152 Snap Fit PCB x .152 Chassis, UL94V-2 nylon material, ASTM D4066, RoHS Compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
85 Series Nylon PCB Supports: .152 Board Hole x .152 Chassis Side
$39.99
Quantity: 1
Claim Your Seller Account
85 Series Nylon PCB Supports: .152 Board Hole x .152 Chassis Side
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

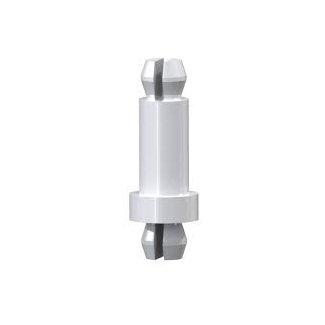

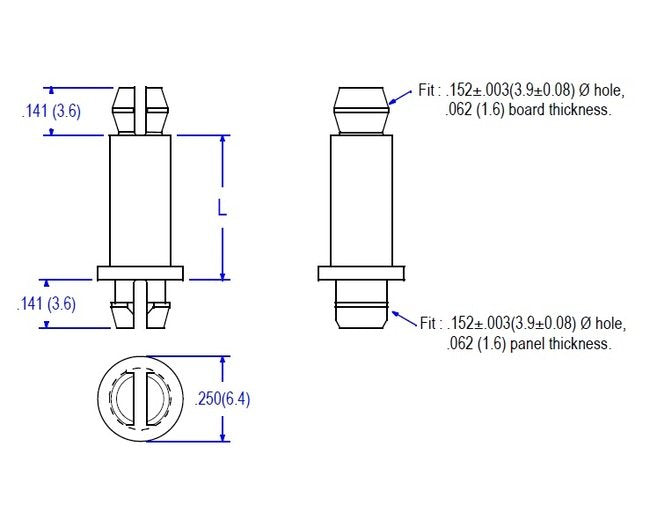

Designed for secure PCB mounting, the 85 Series Nylon PCB Supports feature a .152 snap fit PCB x .152 lock fit chassis end construction. Crafted from UL94V-2 Nylon 66 (UL94V-0 available), these supports ensure reliable performance in temperatures ranging from -40 to 185F (-40 to 85C). Each pack contains 1000 supports, and they meet ASTM D 4066 and PA111 standards. Secure your circuit boards with confidence and precision.
Product Specifications
Specifications Dim L
.375 (9.5) inches (mm)
