85 Series PCB Support .152 Board Hole x .152 Chassis Side
85 Series PCB Support .152 Board Hole x .152 Chassis Side
SKU:01C-cf44f8
Securely mount circuit boards with the 85 Series PCB Support. RoHS compliant, durable Nylon 66 material. Temperature range: -40 to 185F.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
85 Series PCB Support .152 Board Hole x .152 Chassis Side
$24.99
Quantity: 1
Claim Your Seller Account
85 Series PCB Support .152 Board Hole x .152 Chassis Side
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

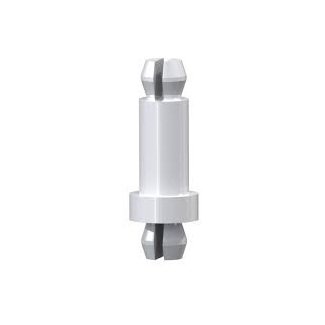

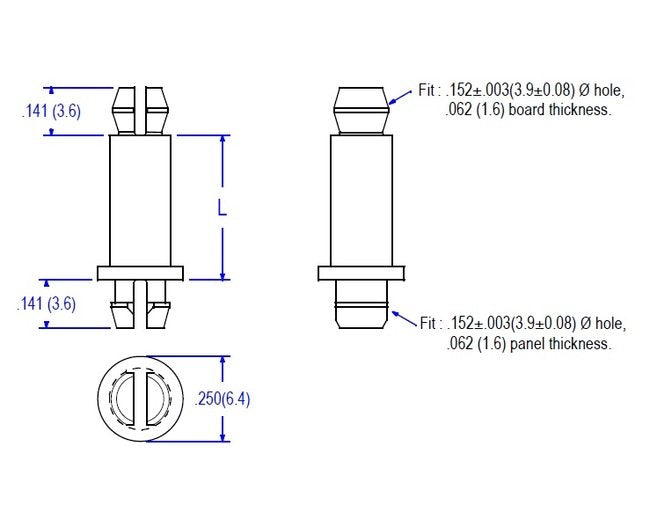

The 85 Series PCB Support is designed for secure mounting of circuit boards, featuring a .152 Snap Fit PCB and .152 Lock Fit Chassis End. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is RoHS compliant and offers a temperature range of -40 to 185F (-40 to 85C). With ASTM D 4066 and PA111 certifications, this support ensures durability and reliability for your electronic assemblies.
Product Specifications
Specifications Dim L
.125 (3.2) inches (mm)
