85 Series PCB Support: .152 Board Hole x .152 Chassis Side
85 Series PCB Support: .152 Board Hole x .152 Chassis Side
SKU:01C-912bb5
Durable 85 Series PCB Support for .152 snap fit PCB & chassis end. RoHS compliant with ASTM standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
85 Series PCB Support: .152 Board Hole x .152 Chassis Side
$39.99
Quantity: 1
Claim Your Seller Account
85 Series PCB Support: .152 Board Hole x .152 Chassis Side
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

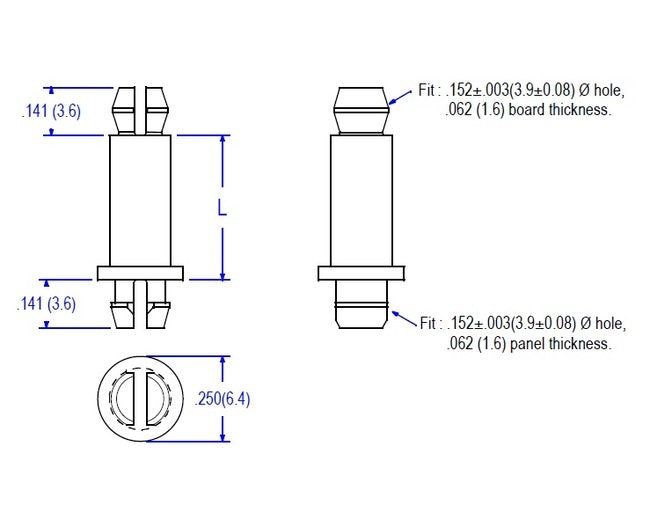

The 85 Series PCB Support is designed for seamless assembly with a .152 snap fit PCB and a .152 lock fit chassis end. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support ensures durability and reliability. It meets ASTM D 4066 and PA111 standards, is RoHS compliant, and has a temperature range of -40 to 185F (-40 to 85C). Each pack contains 1000 supports to cater to your project needs efficiently.
Product Specifications
Specifications Dim L
.500 (12.7) inches (mm)
