85 Series PCB Support: .152 Board Hole x .152 Chassis Side
85 Series PCB Support: .152 Board Hole x .152 Chassis Side
SKU:01C-d90b44
Securely fit PCBs with 85 Series .152 Board Hole x .152 Chassis Side supports. RoHS compliant Nylon 66 material. Pack of 1000.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
85 Series PCB Support: .152 Board Hole x .152 Chassis Side
$49.99
Quantity: 1
Claim Your Seller Account
85 Series PCB Support: .152 Board Hole x .152 Chassis Side
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

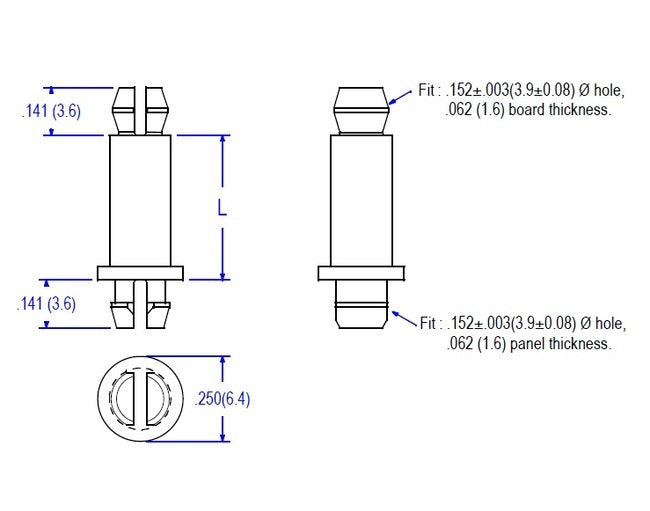

The 85 Series PCB Support is designed for a perfect fit with a .152 board hole and chassis side, ensuring secure assembly. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it offers robust support and durability. This support is RoHS compliant and operates within a temperature range of -40 to 185F (-40 to 85C), meeting ASTM D 4066 and PA111 standards. Each pack contains 1000 supports, providing reliable structural reinforcement for circuit boards.
Product Specifications
Specifications Dim L
.688 (17.5) inches (mm)
