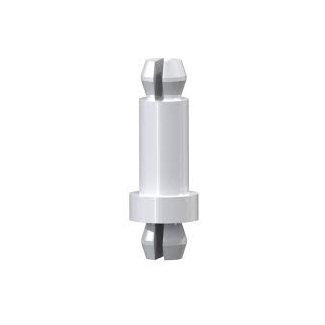

85 Series Snap-Fit PCB Supports
85 Series Snap-Fit PCB Supports
SKU:01C-1f8aee
Durable .152 Board Hole x .152 Chassis Side PCB Support for secure and easy assembly.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
85 Series Snap-Fit PCB Supports
$29.99
Quantity: 1
Claim Your Seller Account
85 Series Snap-Fit PCB Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

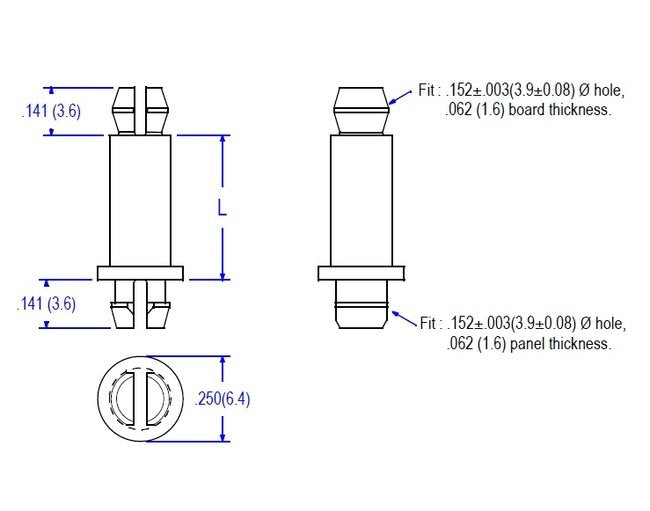

The 85 Series Snap-Fit PCB Supports .152 Board Hole x .152 Chassis Side are essential components for secure PCB installations. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports offer exceptional durability and heat resistance. With a snap-fit PCB design and lock-fit chassis end, they ensure stable positioning and easy assembly. RoHS compliant and meeting ASTM D 4066 and PA111 standards, these supports guarantee safety and reliability in various applications. Their temperature range of -40 to 185F (-40 to 85C) makes them suitable for diverse environments.
Product Specifications
Specifications Dim L
1.25 (31.8) inches (mm)
