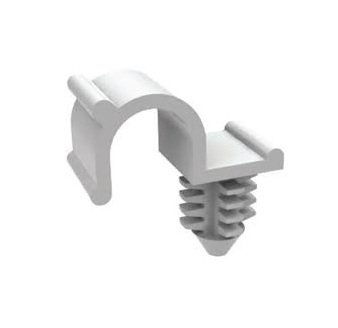

85 Series U-Style Routing Clip - Blind Hole Mount
85 Series U-Style Routing Clip - Blind Hole Mount
SKU:03W-b706e9
Secure, organize, and protect wire bundles with the 85 Series U-Style Routing Clip - a durable, RoHS-compliant solution.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
85 Series U-Style Routing Clip - Blind Hole Mount
$9.99
Quantity: 1
Claim Your Seller Account
85 Series U-Style Routing Clip - Blind Hole Mount
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 85 Series U-Style Routing Clip is designed for securing 1/8" to 1/4" bundles with precision. Featuring a Blind Hole/X-Mass Tree Mount for seamless installation on panels/chassis with a minimum thickness of .250 inches, this clip is crafted from durable Nylon 66 (UL94V-2) material. With dimensions of .30" (L) x .62" (W) x .27" (W1), it accommodates a bundle diameter of .25". Stay compliant with RoHS standards and enhance wire routing efficiency with this reliable solution.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

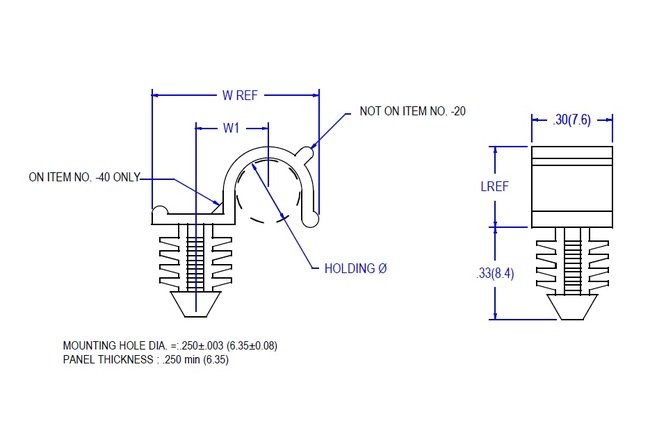

Specifications D Bundle Diameter
.25 (6.4) inches (mm)
Specifications L Ref
.30 (7.6) inches (mm)
Specifications W1 Ref
.27 (6.9) inches (mm)
Specifications W Ref
.62 (15.7) inches (mm)
