85 Series U-Style Routing Clip - Blind Hole Mount (1/2")

Name: 85 Series U-Style Routing Clip - Blind Hole Mount (1/2")
Brand: All Electronics Hardware
SKU: 03W-6042bf
Price: 12.99 USD
Availability: OutOfStock

SKU:03W-6042bf

Manage wire routing with precision using the 85 Series U-Style Routing Clip - Blind Hole Mount (1/2"). Durable, compliant, and efficient solution for wire organization.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

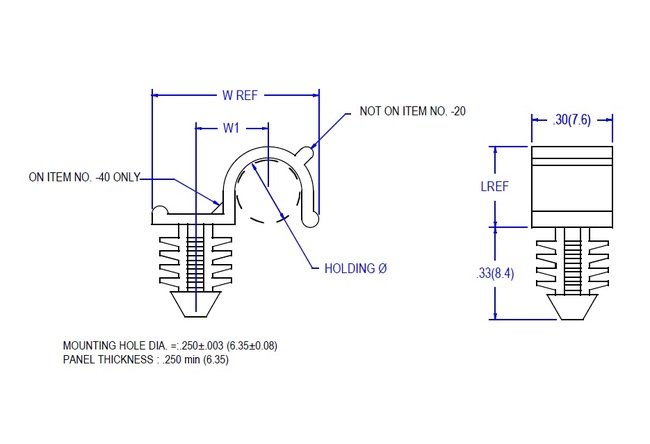

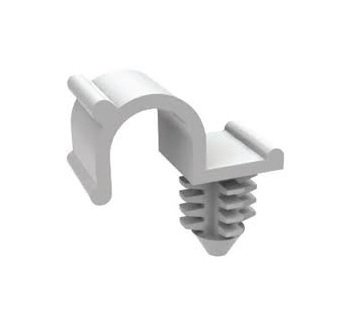

The 85 Series U-Style Routing Clip is a versatile wire management solution suitable for 1/8" to 1/4" bundles. Designed for blind hole mounting, this clip features an X-Mass Tree Type mount with a .250 Mtg Hole, ideal for installations on panels/chassis with a minimum thickness of .250 inches. Crafted from durable Nylon 66 (UL94V-2) material in a natural color, this RoHS-compliant clip ensures secure and efficient wire routing. With dimensions of .17" (L), .49" (W), .20" (W1), and accommodating a bundle diameter of .12" (D), this clip offers precise and reliable wire organization in institutional settings.

Product Specifications

Specifications D Bundle Diameter

.12 (3.2) inches (mm)

Specifications L Ref

.17 (4.3) inches (mm)

Specifications W1 Ref

.20 (5.1) inches (mm)

Specifications W Ref

.49 (12.4) inches (mm)

85 Series U-Style Routing Clip - Blind Hole Mount (1/2")
