86 Series Board Support - .157 Board Hole x .213 Chassis Hole
86 Series Board Support - .157 Board Hole x .213 Chassis Hole
SKU:01C-dcd13b

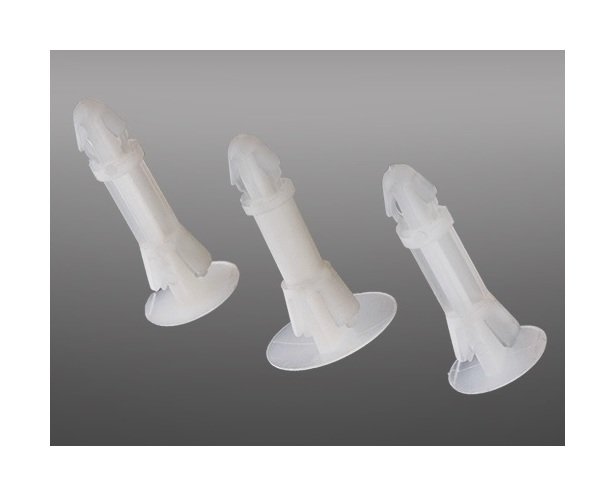

Durable 86 Series Board Support for PCBs with reverse locking design and RoHS compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
86 Series Board Support - .157 Board Hole x .213 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
86 Series Board Support - .157 Board Hole x .213 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 86 Series Board Support features a reverse locking design suitable for PCB applications. With a .063 PCB Thickness and .063-.078 Chassis Thickness, this support offers reliable stability. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is durable and RoHS compliant. It has a temperature range of -40 to 185°F (-40 to 85°C), meeting stringent industry standards like ASTM D 4066 PA111.

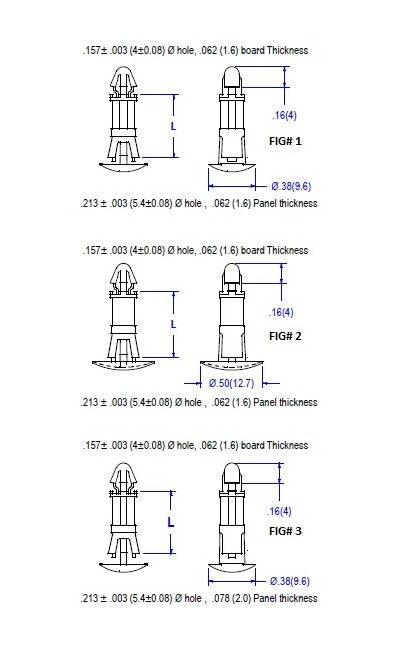

Product Specifications
Specifications Fig
3
Specifications L 015
.236 (6) inches (mm)
